S6061SF-10/15 Fire Smoke Damper Actuator

Specially designed for small and medium air damper and control unit used in air volume system. Because of its small size and flexible control, it usually used in such places where the space is limited.

S6061SF-10/15 Fire Smoke Damper Actuator

Features of S6061SF-10-15 Fire Smoke Damper Actuator

  • ON/OFF or 0-10V
  • Shaft size up to 12* 12mm
  • Two fixed auxiliary switches
  • With IP54 standard
  • Without Manuel Override
  • 72℃ thermal sensor are optional

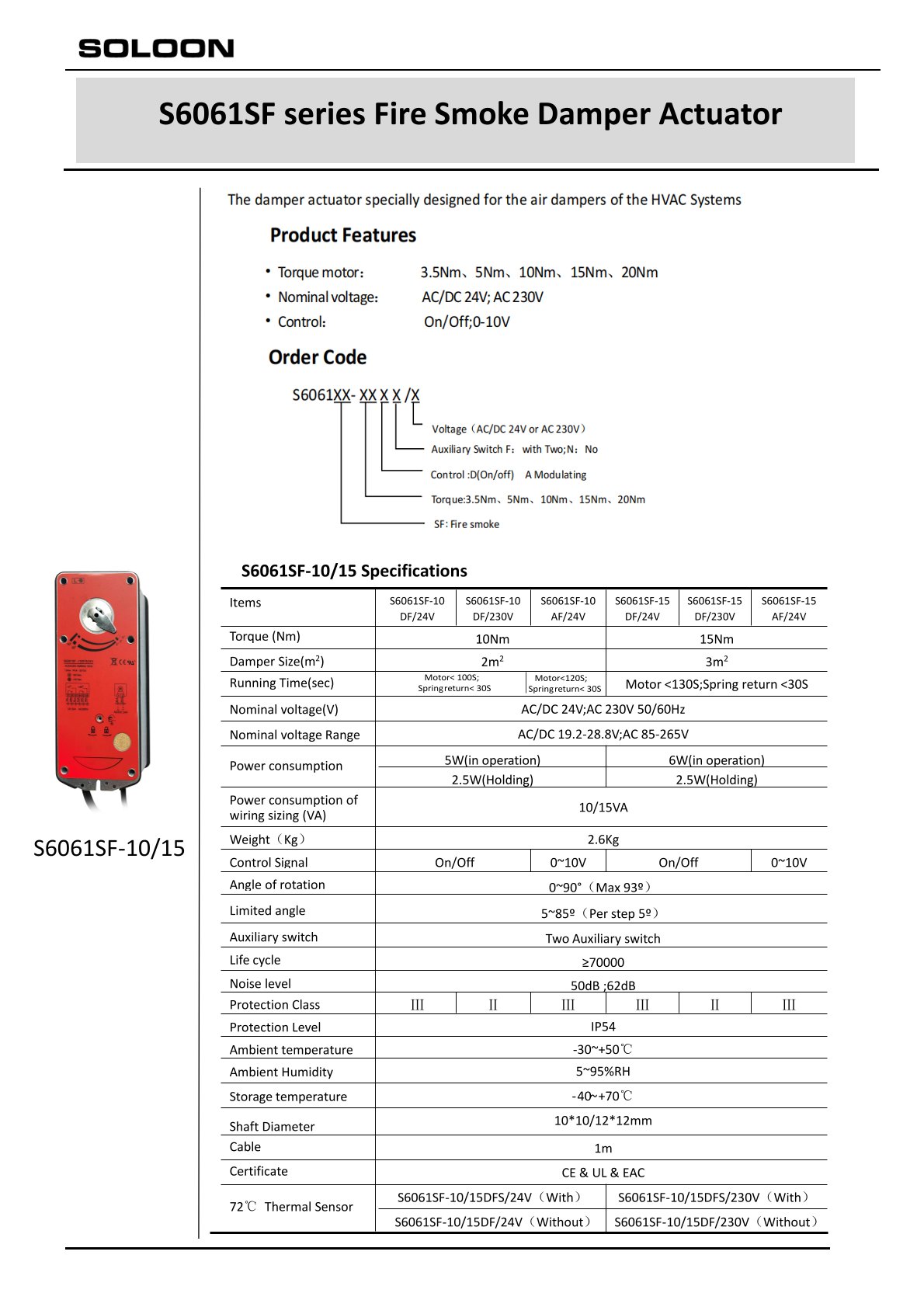

Technical Datasheet of S6061SF-10-15 Fire Smoke Damper Actuator

Item S6061SF-10DF(S)/24V S6061SF-10DF(S)/230V S6061SF-10AF/24V S6061SF-15DF(S)/24V S6061SF-15DF(S)/230V S6061SF-15AF/24V
Torque 10Nm 15Nm
Damper area 2m2 3m2
Power supply 24VAC/DC; 230VAC 50/60Hz,
Operating Power Consumption 5W 6W
At end stops Power Consumption 2.5W 2.5W
Wire size 10VA 7VA 10VA 7VA
Connection cable D type power:1m cable 2*0.75 mA type power:1m cable 4*0.5 m2
Auxiliary switch (F):1m cable 6*0.5 m2
Thermal sensor(S):1m cable 2*0.5 m2
Control signal On/off 0~10V On/off 0~10V
Running time motor≤100S;spring return≤20S motor≤130S;spring return≤20S
Rotation angle 0~90°(Max 93º)
Indicate Mechanical indicator
Weight 2.6Kg
Life cycle 70000
Noise level 50dB(A) and 62dB(A)
Electric level
IP protection IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5~95%RH
Standard CE & UL

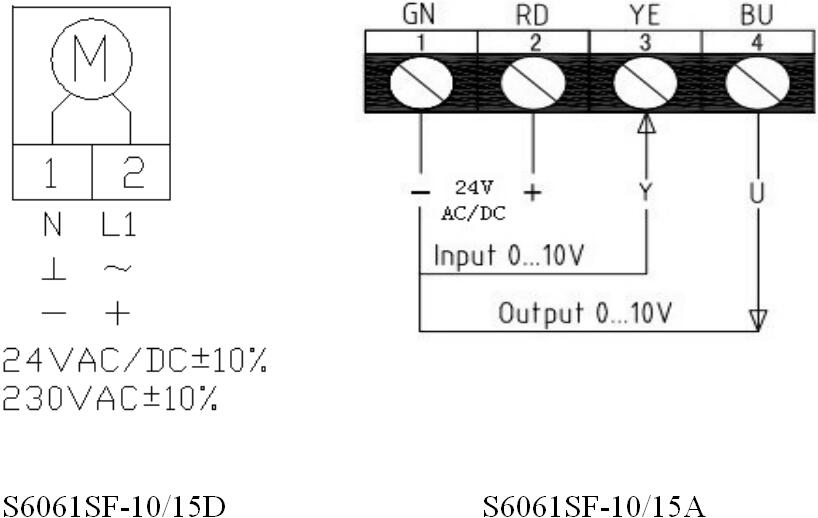

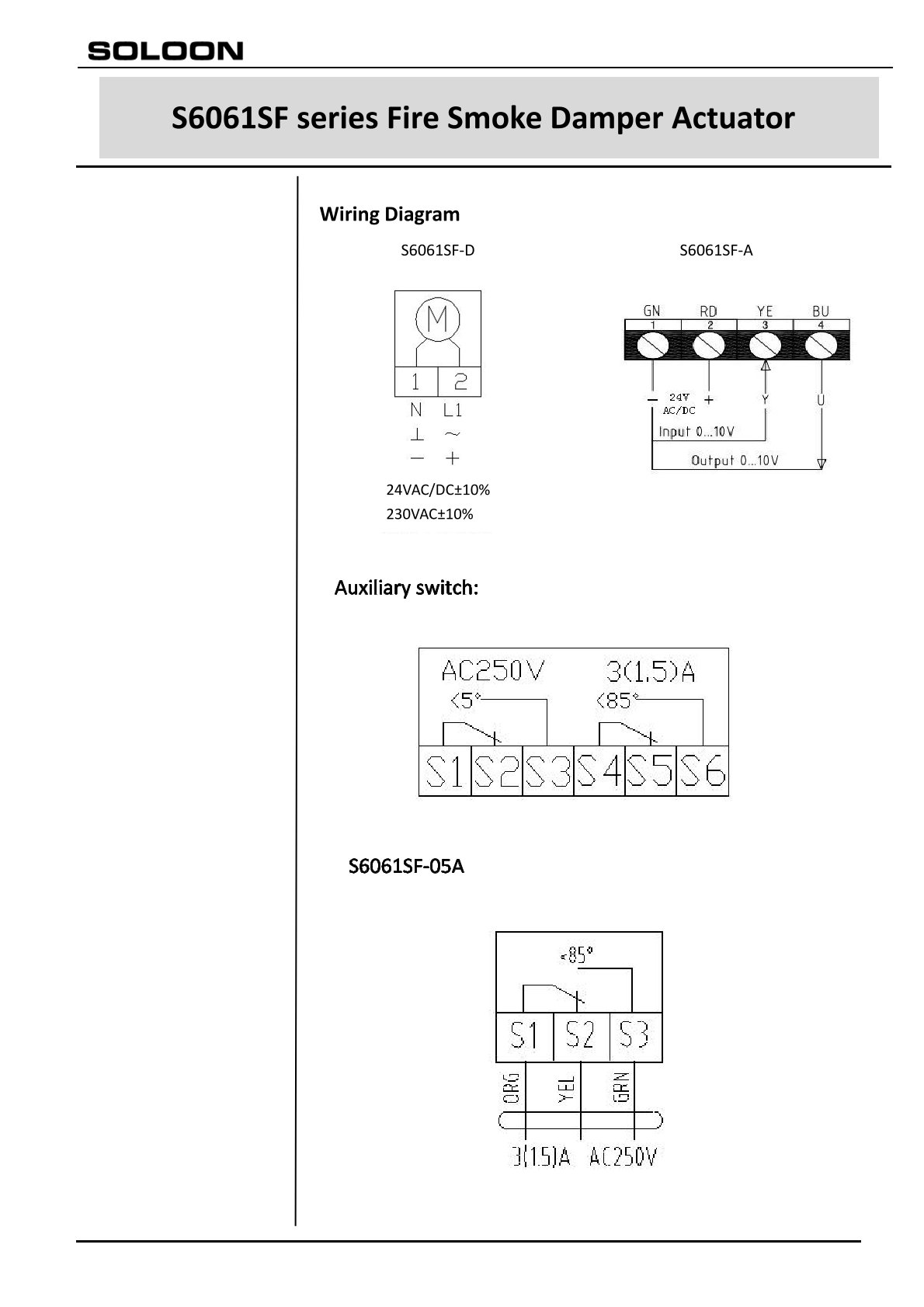

Diagram and Dimension of S6061SF-10-15 Fire Smoke Damper Actuator

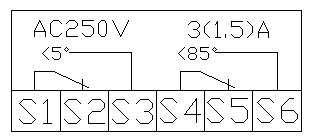

Auxiliary Switch of S6061SF-10-15 Fire Smoke Damper Actuator

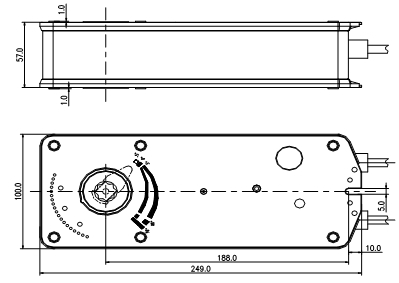

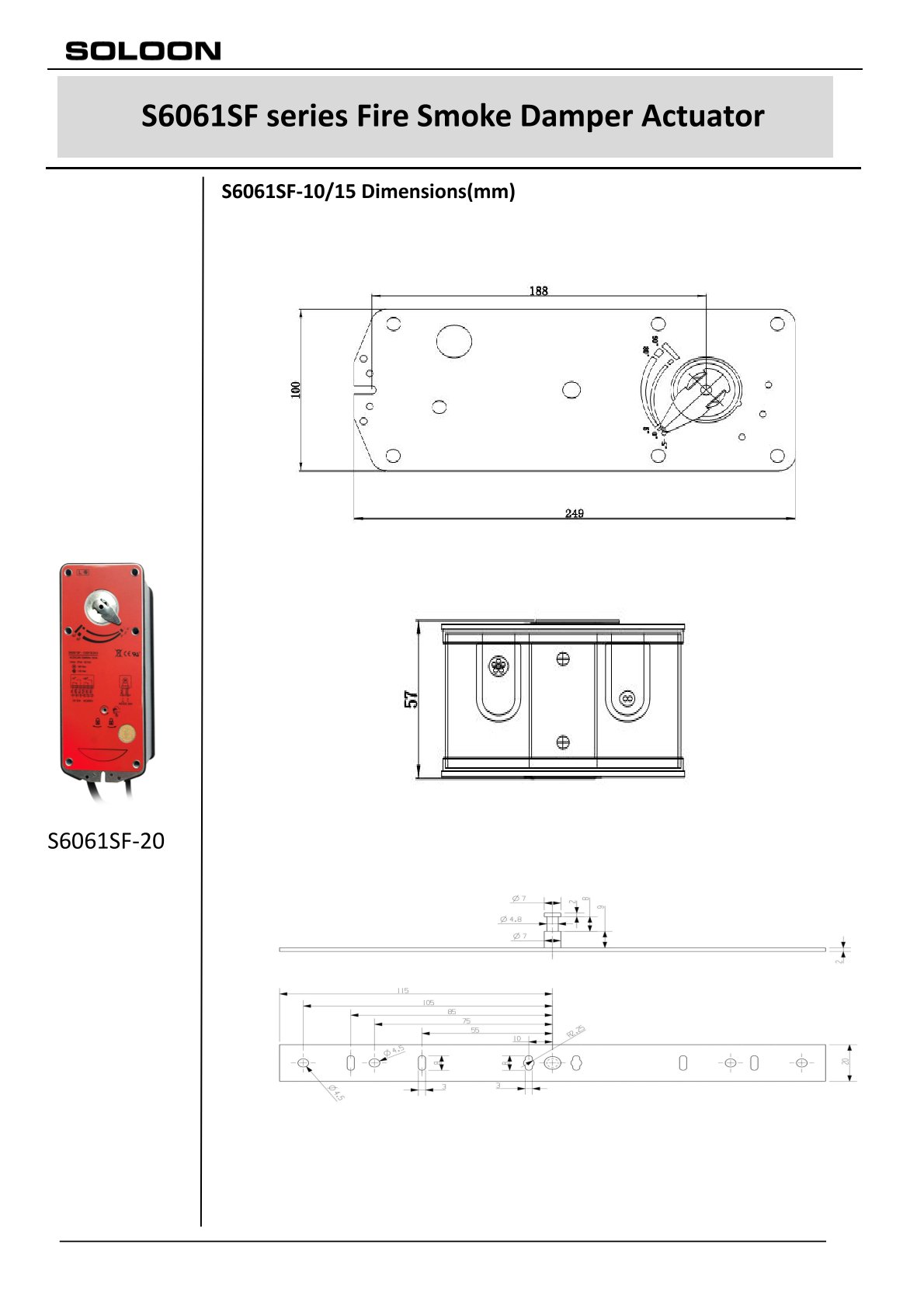

Dimension of S6061SF-10-15 Fire Smoke Damper Actuator

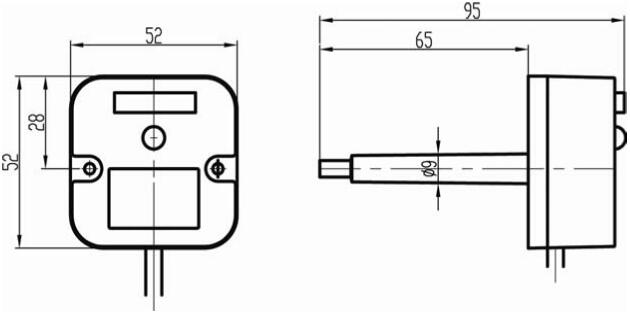

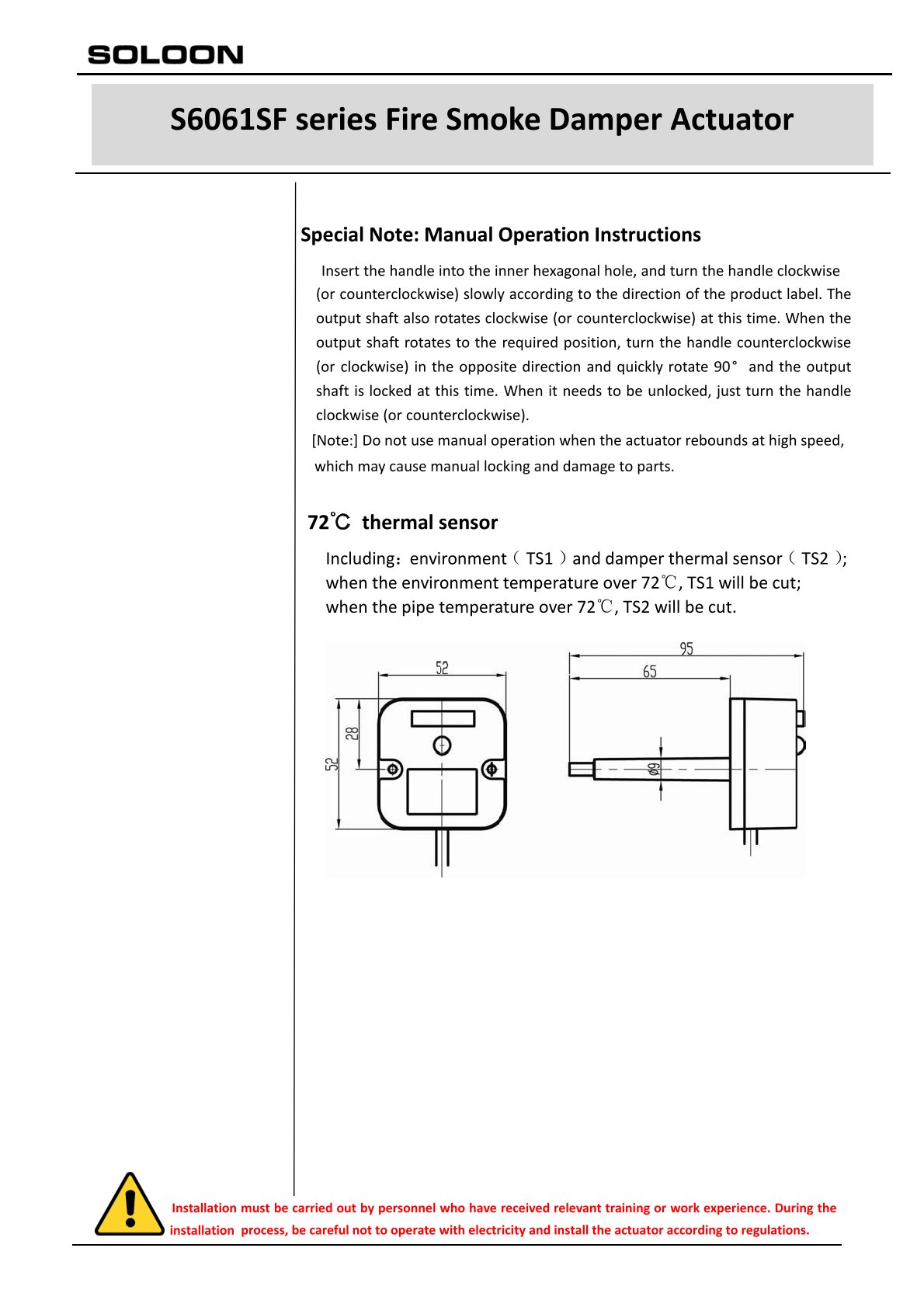

72℃ thermal sensor

Including: environment(TS1) and damper thermal sensor (TS2);
when the temperature over 72℃, TS1 will be cut;
when the pipe temperature over 72℃, TS2 will be cut.
