This temperature switch is specifically designed for damper control in explosive atmospheres where flammable gases, vapors, or combustible dusts may be present, particularly in industries such as oil and petrochemicals. It is intended for use in conjunction with explosion-proof damper actuators.
The product holds domestic explosion-proof certification (China), as well as international ATEX and IECEx approvals.
Technical Specifications
| Parameter | ExS6011-T/72℃ | ExS6011-T/150℃ |
|---|---|---|
| Power Supply | AC/DC 24V 50/60Hz; AC 110-230V 50/60Hz | AC/DC 24V 50/60Hz; AC 110-230V 50/60Hz |
| Rated Current | Max 3A | Max 3A |
| Operating / Trip Temperature | 72℃ | 150℃ |
| Weight | 0.5Kg | 0.5Kg |
| Standard Configuration | With 1m cable | With 1m cable |
| Electrical Rating | Class II / III | Class II / III |
| Ingress Protection | IP66 | IP66 |
| Ambient Temperature / Humidity | -30~+60℃ / 5~95% RH | -30~+60℃ / 5~95% RH |
| Explosion Protection Marking | Ex db ⅡC T6 Gb; Ex tb ⅢC T85℃ Db | Ex db ⅡC T6 Gb; Ex tb ⅢC T85℃ Db |
| Media Temperature / Gas | 72℃ | 150℃ |
| Manual Operation Cycles | No less than 1,000 times | No less than 1,000 times |
72℃ Temperature Switch

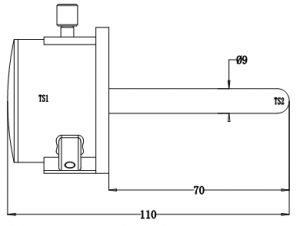

Comprises two independent temperature switches: ambient temperature switch (TS1) and duct/ventilation opening internal temperature switch (TS2).
150℃ Temperature Switch
Comprises two independent temperature switches: ambient temperature switch (TS1) and duct/ventilation opening internal temperature switch (TS2).
Compliant with the following standards:
