Features of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

Torque 32NM
2 or 3 points
Actuator and damper shaft are bolt-on by screw.
Maximum round shaft φ20 and square shaft 16*16mm.
Direction of rotation can be setting.
Manuel Override
With 2 auxiliary switches are optional
Power supply AC/DC 24V or AC 230V

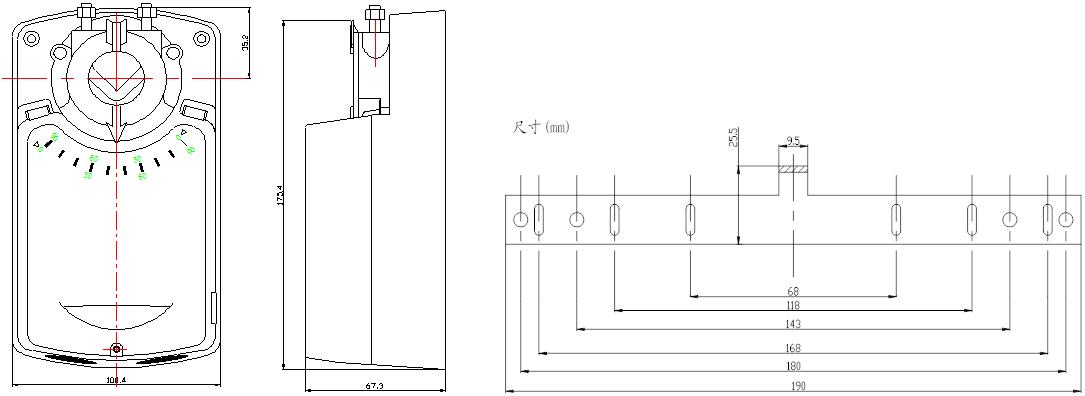

Outline and Mounting Dimension of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

s6061-32d-standard-damper-actuator-non-fail-safe-damper-actuators-2

Technical Datasheet of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

Item	Unit	S6061-32DN（F）	S6061-32DN（F）
Torque	Nm	32 Nm
Damper area	m²	6 m²
Running time	sec	114~138
Power supply	V	24VAC/DC	220VAC
Frequency	Hz	50/60 7.5W 50/60Hz
Running consumption	W	4.0W	5.5W
Maintaining consumption	W	0.5W	1.0W
Weight	Kg	1.25Kg
Control signal		2/3 point
Rotation angle		0~90º（Max 93°）
Limited angle		5~85º（Per step 5º）
Auxiliary switch rating		3（1.5）Amp 250V
Life cycle		>70000 cycles
Noise level		45dB(A)
Electrical level		Ⅱ
Protection level		IP44 or IP54
Ambient Temperature		-20~+50℃
Ambient Humidity		5~95%RH
Storage temperature		-40~+70℃
Certificate		CE UL（Except 230V）

Remark: After lead to the actuator wire through PG joint, the protection level can reach IP54.

Wiring Diagram of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

s6061-32d-standard-damper-actuator-non-fail-safe-damper-actuators-7

Wiring Diagram of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

s6061-32d-standard-damper-actuator-non-fail-safe-damper-actuators-5

Resistance feedback

Auxiliary Switch of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

There are two auxiliary switches of S6061-32DF damper actuator, can set the angle 0-90° (factory sets 10° and 80°), it will show a signal when the actuator turns to the setting angle.

s6061-32d-standard-damper-actuator-non-fail-safe-damper-actuators-4

Angle of Rotation Limiting of S6061-32D Standard Damper Actuator (Non Fail-Safe Damper Actuators)

The rotation angle or working range of the actuator can be adjusted 5°by adapter so that can limit mechanically. You just press the locking clip to lose the adapter.
