S6025 Fluid Level Switch

S6064 (DN15-DN150)-S6061Q Electric Ball Valves

S6064 series ball valve (PID regulating valve) has the features of high reliability and long service life. The valve adopts PTFE graphite ring and dual-EPDM stem seal ring to enhance the sealing of valve, equips unibody rectifier blade to adapt reverse pressure difference. The functions include equal percentage flow, high shutoff force 1.4Mpa, rated working pressure PN16, max. working pressure difference 0.35Mpa, manual actuator short circuit button, and -5°C to 121°C working temperature. The valve is applicable to water, steam or 50% water glycol.

S6064 (DN15-DN150)-S6061Q Electric Ball Valves

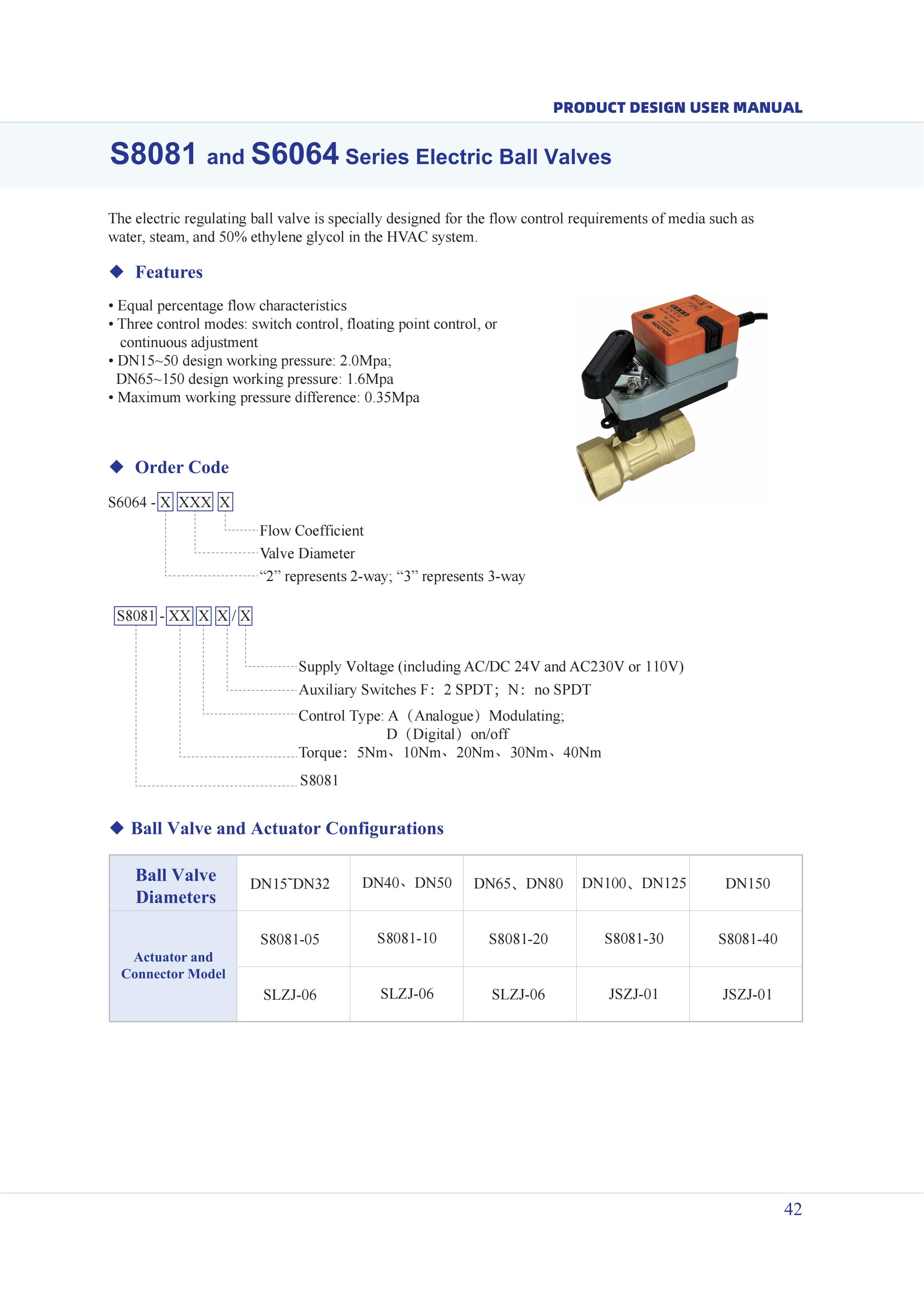

Introduction of S6064(DN15-DN150)-S6061Q Electric Ball Valves



S6064 series ball valve (PID regulating valve) has the features of high reliability and long service life. The valve adopts PTFE graphite ring and dual-EPDM stem seal ring to enhance the sealing of valve, equips unibody rectifier blade to adapt reverse pressure difference. The functions include equal percentage flow, high shutoff force 1.4Mpa, rated working pressure PN16, max. working pressure difference 0.35Mpa, manual actuator short circuit button, and -5°C to 121°C working temperature. The valve is applicable to water, steam or 50% water glycol.



Features of S6064(DN15-DN150)-S6061Q Electric Ball Valves

1. S6064 series ball valve is widely applicable with overall functions.

  • Build-in unibody rectifier blade
  • Equal percentage flow
  • Adjustable flow ratio
  • Options of different torques
  • Types of switching control, floating control, and continuous regulating



2. S6064 series ball valve is designed for high pressure working.

  • DN15~50 working pressure:2.0Mpa; DN65~150 working pressure:1.6Mpa
  • Max working pressure difference: 0.35Mpa



3. S6064 series ball valve has high adjustable flow ratio for accuracy control in all loading conditions.

  • Build-in unibody high-strength material rectifier blade, without risk of loss



4. S6064 series ball valve adopts stainless steel ball spool and stem for HVAC engineering.

  • Working temperature: -5 to 121 ºC
  • Applicable to 50% water glycol
  • Applicable to 100kPa saturated steam
  • Applicable to water system with rust



5. S6064 series ball valve is simply used, different types with connecting fittings could meet all requirements.

Actuator fittings DN15~DN40 DN50 DN65/80 DN100/125 DN150
Non-Spring Return S6061Q-04 S6061Q-08 S6061Q-16 S6061Q-24 S6061Q-32



6. S6064 series ball valve adopts high-strength material connecting fittings.

  • High-strength material
  • Suit for high temp or low temp working conditions
  • Resistant to chemical corrosion
  • Reserve required space for piping insulation
  • Matching S6061 actuators with 4 screws fixing for valve and connector.



7. S6064 series ball valve adopts PTFE graphite ring and dual-EPDM stem seal ring to enhance the sealing.

  • Anti-wear function
  • Actuating valve requires low torque
  • Dual-preventing leakage for stem sealing
  • Specific PTFE Teflon stem setting ring



8. S6064 series ball valve has features of small volume, wild option range and wild application area.

  • Varies of air handling units
  • Variable Air Volume, dehumidifying, fan coil unit
  • Single fan unit
  • Air preheating coil unit
  • Roof-top air conditioning unit
  • Boiler system, chiller unit

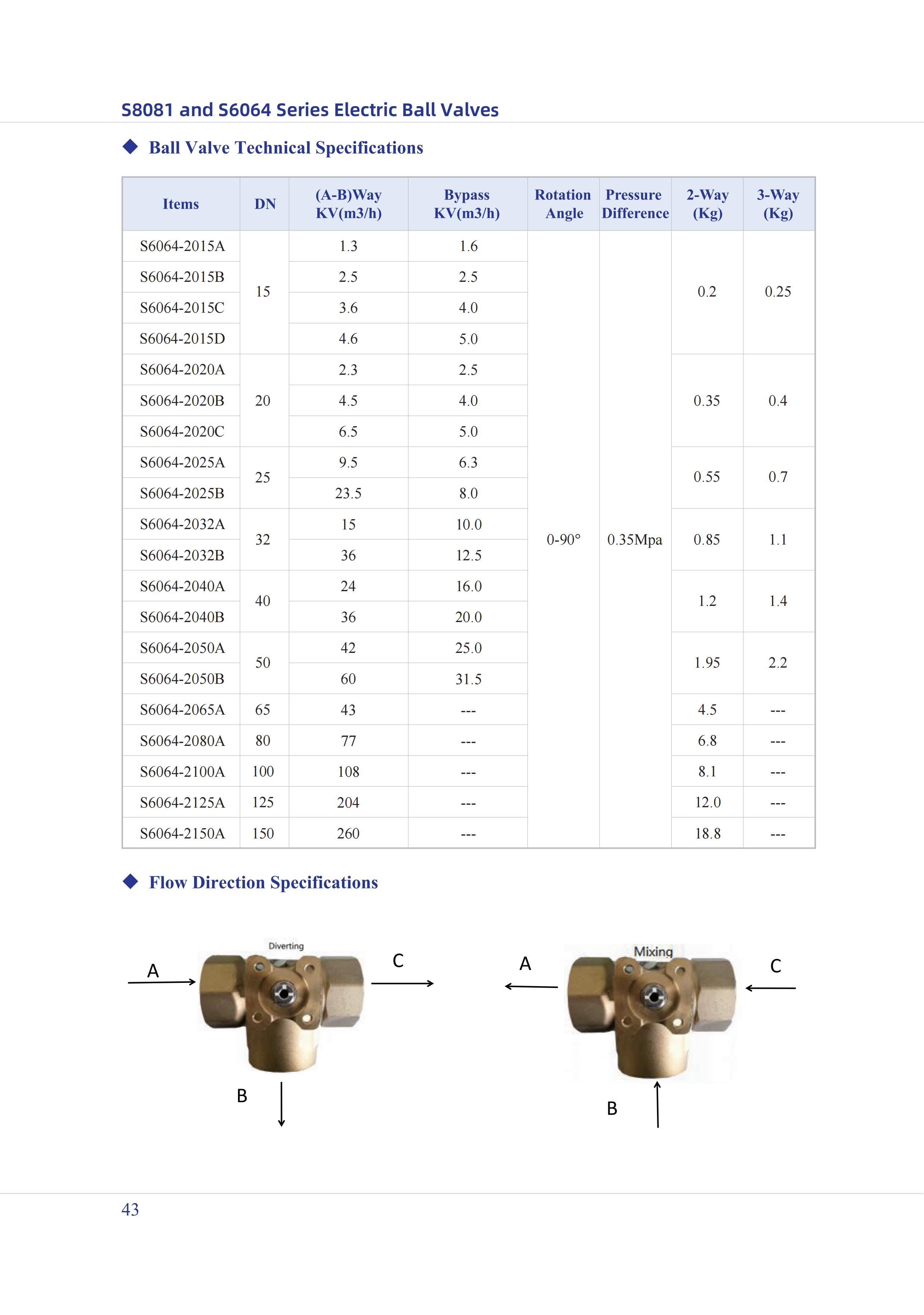

Valve Specification of S6064(DN15-DN150)-S6061Q Electric Ball Valves



Model DN (A-B)Way

KV(m3/h)

Bypass

KV(m3/h)

Angle of Rotation pressure difference 2-Way

(Kg)

3-Way

(Kg)

S6064-2015A 15 2.5 1.6 0-90° 0.35Mpa 0.2 0.25
S6064-2015B 4.0 2.5
S6064-2015C 6.3 4.0
S6064-2015D 10.0 5.0
S6064-2020A 20 4.0 2.5 0.35 0.4
S6064-2020B 6.3 4.0
S6064-2020C 10.0 5.0
S6064-2025A 25 10.0 6.3 0.55 0.7
S6064-2025B 16.0 8.0
S6064-2032A 32 16.0 10.0 0.85 1.10
S6064-2032B 25.0 12.5
S6064-2040A 40 25.0 16.0 1.2 1.4
S6064-2040B 40.0 20.0
S6064-2050A 50 40.0 25.0 1.95 2.20
S6064-2050B 63.0 31.5
S6064-2065A 65 63 4.5
S6064-2080A 80 100 6.8
S6064-2100A 100 160 8.1
S6064-2125A 125 250 12.0
S6064-2150A 150 400 18.8



Direction of Flow of S6064(DN15-DN150)-S6061Q Electric Ball Valves



s6064(dn15-dn150)-s6061q

Actuator Specification of S6064(DN15-DN150)-S6061Q Electric Ball Valves



Items Unit S6061Q-04



S6061Q-08



S6061Q-16



S6061Q-24



S6061Q-32



Torque Nm 4 8 16 24 32
DN mm DN15~DN40

1

1

DN50



DN65、DN80 DN100/DN125 DN150
Running Time sec 30~40 30~40 72~88 117~143 A/D:114~138
Power Supply V 24VAC/DC/230VAC/230VAC/110VAC
Operating Power Consumption W D A D A D A
2.5 4.0 3.9(24V) 4.0(24V) 4.0(24V) 2..5

(24V)

4.8(230V) 4.8(230V) 5.5

(230V)



At end stops Power Consumption W 0.85 3.0 0.4(24V) 0.7(24V) 0.3(24V)



0.3

(24V)



1.2(230V) 1.0(230V) 1.0

(230V)

Weight Kg 1.0 1.1 1.1
Control Signal 2/3 point 0~10V Modulating:0(4)…20mA / 0(2)…10V; On/off:2/3 point
Rotation Angle 0~90º(Max93°)
Auxiliary Switches Rating 3(1.5)Amp 250V
Life Cycle 70000 cycles
Sound Level 45dB(A)
Protection Standard IP44 or IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5-95%RH
Certificate CE



Wiring Diagram of S6064(DN15-DN150)-S6061Q Electric Ball Valves



 s6064-dn15-dn150-s6061q-electric-ball-valves-3



S6061Q-(04~32)D



s6064-dn15-dn150-s6061q-electric-ball-valves-4



Auxiliary Switches of S6064(DN15-DN150)-S6061Q Electric Ball Valves



S6061 series damper actuator could have 2 auxiliary switches which set angle in 0-90° for output signal. Please set the angle as per the instruction.



s6064-dn15-dn150-s6061q-electric-ball-valves-5



3(1.5)Amp 220V

The actuator is in 250V



S6061Q-(08~32)A Control Signal and Rotation Direction of S6064(DN15-DN150)-S6061Q Electric Ball Valves



s6064-dn15-dn150-s6061q-electric-ball-valves-6



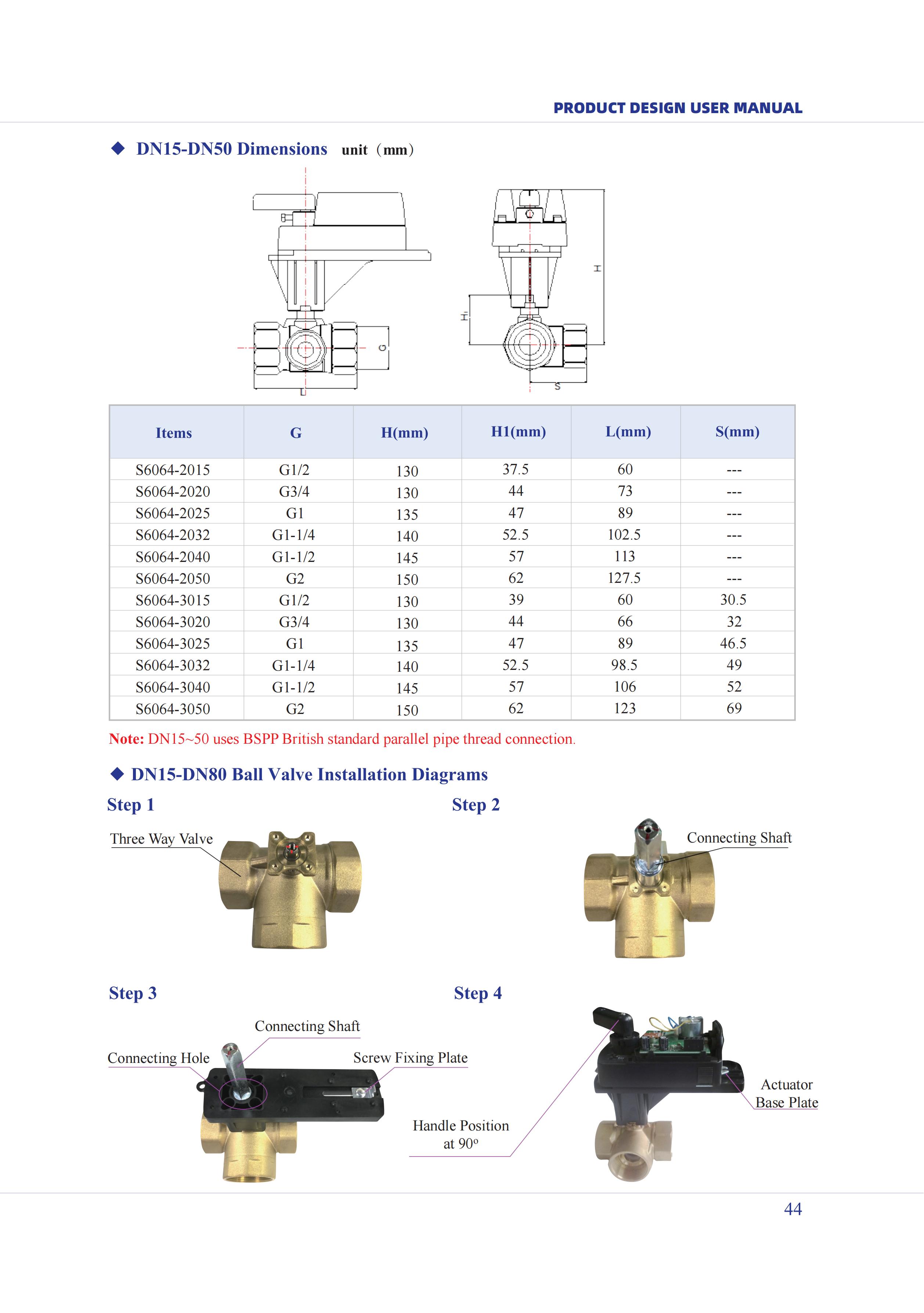

Dimensions of S6064(DN15-DN150)-S6061Q Electric Ball Valves

Unit(mm)

Model G H(mm) H1(mm) L(mm) S(mm)
S6064-2015 G1/2 165 37.5 60
S6064-2020 G3/4 165 44 73
S6064-2025 G1 170 47 89
S6064-2032 G1-1/4 175 52.5 102.5
S6064-2040 G1-1/2 180 57 113
S6064-2050 G2 185 62 127.5
S6064-3015 G1/2 165 39 60 30.5
S6064-3020 G3/4 165 44 66 32
S6064-3025 G1 170 47 89 46.5
S6064-3032 G1-1/4 175 52.5 98.5 49
S6064-3040 G1-1/2 180 57 106 52
S6064-3050 G2 185 62 123 69



Note: DN15~50 use BSPP English standard parallel pipe thread connection.



s6064-dn15-dn150-s6061q-electric-ball-valves-7



Model Flange L(mm) D(mm) H(mm) n-d
S6064-2065 145 97 105 136 4-18
S6064-2080 160 108 125 140 8-18
S6064-2100 175 120 145 104 8-18
S6064-2125 200 145 175 115 8-18
S6064-2150 230 165 205 138 8-18



s6064-dn15-dn150-s6061q-electric-ball-valves-8



Note: When the valve is opening, do not put your fingers into the valve, so that protect your fingers from the valve when closing.
