Intangiriro ya S6064 (DN15-DN150) -S6061QAmashanyarazi

S6064 y'uruhererekane rw'umupira wa valve (PID igenga valve) ifite ibiranga kwizerwa cyane kandi ubuzima burebure.Umuyoboro ufata impeta ya PTFE nimpeta ebyiri-EPDM yikimenyetso cya kashe kugirango uzamure kashe ya valve, uha ibikoresho bya unibody rectifier blade kugirango uhuze itandukaniro ryumuvuduko ukabije.Imikorere ikubiyemo ijanisha ringana, imbaraga zo guhagarika 1.4Mpa, igipimo cyakazi cyakazi PN16, max.itandukaniro ryumuvuduko wakazi 0.35Mpa, intoki zikoresha buto buto yumuzunguruko, na -5 ° C kugeza 121 ° C ubushyuhe bwakazi.Umuyoboro ukoreshwa kumazi, amavuta cyangwa 50% glycol.

Ibiranga S6064 (DN15-DN150) -S6061QAmashanyarazi

1. S6064 ikurikirana yumupira wumupira urakoreshwa cyane nibikorwa rusange.

Kubaka muri unibody ikosora icyuma
Kuringaniza ijanisha
Ikigereranyo cyo gutembera
Amahitamo ya torque zitandukanye
Ubwoko bwo guhinduranya, kugenzura kureremba, no gukomeza kugenzura

2. S6064 yuruhererekane rwumupira valve yagenewe gukora umuvuduko mwinshi ukora.

DN15 ~ 50 igitutu cyakazi: 2.0Mpa;DN65 ~ 150 igitutu cyakazi: 1.6Mpa
Itandukaniro ryumuvuduko wakazi: 0.35Mpa

3. S6064 y'uruhererekane rw'umupira wa valve ifite igipimo kinini gishobora guhinduka kugirango igenzurwe neza mubihe byose byo gupakira.

Wubake muri unibody imbaraga-zikomeye zo gukosora ibyuma, nta ngaruka zo gutakaza

4. S6064 yuruhererekane rwumupira wa valve ifata ibyuma bitagira umuyonga umupira hamwe nigiti cya HVAC.

Ubushyuhe bwo gukora: -5 kugeza 121 ºC
Bikoreshwa kuri 50% amazi ya glycol
Bikoreshwa kuri 100kPa yuzuye amavuta
Bikoreshwa muburyo bwamazi hamwe ningese

5. S6064 y'uruhererekane rw'umupira wa valve ikoreshwa gusa, ubwoko butandukanye hamwe nibikoresho bihuza bishobora kuzuza ibisabwa byose.

Ibikoresho bifatika	DN15 ~ DN40	DN50	DN65 / 80	DN100 / 125	DN150
Gutaha	S6061Q-04	S6061Q-08	S6061Q-16	S6061Q-24	S6061Q-32

6. S6064 yuruhererekane rwumupira wa valve ukoresha ibikoresho-bikomeye bihuza ibikoresho.

Ibikoresho bikomeye
Bikwiranye na temp yo hejuru cyangwa temp yo hasi yimirimo
Kurwanya ruswa
Wibike umwanya ukenewe wo kubika insinga
Guhuza ibikorwa bya S6061 hamwe na screw 4 zikosora valve na connexion.

7. S6064 y'uruhererekane rw'umupira wa valve ifata impeta ya grafite ya PTFE hamwe nimpeta ebyiri-EPDM impeta yikimenyetso kugirango izamure kashe.

Igikorwa cyo kurwanya kwambara
Gukoresha valve bisaba umuriro mwinshi
Kabiri-gukumira kumeneka kumutwe
Impeta yihariye ya PTFE Teflon gushiraho impeta

8. S6064 yuruhererekane rwumupira wa valve ifite ibiranga ubunini buto, urutonde rwimisozi hamwe nubuso bwakoreshwa.

Ibice bitandukanye byo gutwara ikirere
Impinduka zumuyaga uhindagurika, gutesha agaciro, igice coil coil
Igice kimwe cyabafana
Igice cyo gushyushya ikirere
Igice cyo hejuru hejuru yubushyuhe
Sisitemu yo guteka, igice cya chiller

Agaciro kerekana S6064 (DN15-DN150) -S6061Q Amashanyarazi yumupira

Icyitegererezo	DN	(AB) Inzira KV (m³/ h)	Bypass KV (m³/ h)	Inguni yo kuzunguruka	itandukaniro ryumuvuduko	2-Inzira (Kg)	3-Inzira (Kg)
S6064-2015A	15	2.5	1.6	0-90 °	0.35Mpa	0.2	0.25
S6064-2015B		4.0	2.5
S6064-2015C		6.3	4.0
S6064-2015D		10.0	5.0
S6064-2020A	20	4.0	2.5			0.35	0.4
S6064-2020B		6.3	4.0
S6064-2020C		10.0	5.0
S6064-2025A	25	10.0	6.3			0.55	0.7
S6064-2025B	25	16.0	8.0			0.55	0.7
S6064-2032A	32	16.0	10.0			0.85	1.10
S6064-2032B	32	25.0	12.5			0.85	1.10
S6064-2040A	40	25.0	16.0			1.2	1.4
S6064-2040B	40	40.0	20.0			1.2	1.4
S6064-2050A	50	40.0	25.0			1.95	2.20
S6064-2050B	50	63.0	31.5			1.95	2.20
S6064-2065A	65	63	-			4.5	-
S6064-2080A	80	100	-			6.8	-
S6064-2100A	100	160	-			8.1	-
S6064-2125A	125	250	-			12.0	-
S6064-2150A	150	400	-			18.8	-

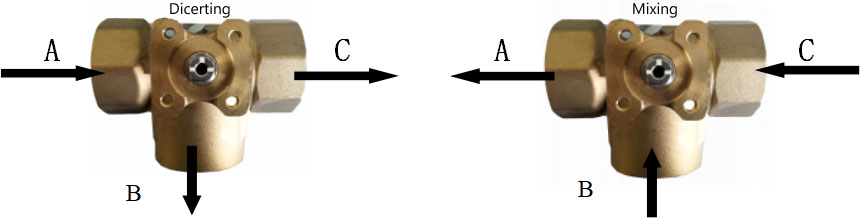

Icyerekezo cyurugendo rwa S6064 (DN15-DN150) -S6061Q Amashanyarazi yumupira

s6064 (dn15-dn150) -s6061q

Acuator Ibisobanuro bya S6064 (DN15-DN150) -S6061Q Amashanyarazi yumupira

Ibintu	Igice	S6061Q-04		S6061Q-08	S6061Q-16	S6061Q-24	S6061Q-32
Torque	Nm	4		8	16	24	32
DN	mm	DN15 ～ DN40 1 1		DN50	DN65 、 DN80	DN100 / DN125	DN150
Igihe cyo Kwiruka	amasegonda	30 ~ 40		30 ~ 40	72 ~ 88	117 ~ 143	A / D ： 114 ~ 138
Amashanyarazi	V	24VAC / DC / 230VAC / 230VAC / 110VAC
Gukoresha Imbaraga	W	D	A		D	A	D	A
		2.5	4.0		3.9 (24V)	4.0 (24V)	4.0 （24V）	2..5 （24V）
					4.8 (230V)	4.8 (230V)	5.5 （230V）	-
Mugusoza guhagarika gukoresha ingufu	W	0.85	3.0		0.4 (24V)	0.7 (24V)	0.3 （24V）	0.3 （24V）
					1.2 (230V)	1.0 (230V)	1.0 （230V）	-
Ibiro	Kg	1.0	1.1				1.1
Kugenzura Ikimenyetso		Ingingo ya 2/3	0 ~ 10V		Guhindura ： 0 (4)… 20mA / 0 (2)… 10V;Kuri / kuzimya point 2/3 ingingo
Inguni		0 ~ 90º （Max93 °）
Urutonde rwabafasha		3 （1.5） Amp 250V
Ubuzima		Inzinguzingo 70000
Urwego Ijwi		45dB (A)
Igipimo cyo Kurinda		IP44 cyangwa IP54
Ubushyuhe bwibidukikije		-20 ~ + 50 ℃
Ubushuhe bw’ibidukikije		5-95% RH
Icyemezo		CE

Igishushanyo cya Wiring ya S6064 (DN15-DN150) -S6061Q Amashanyarazi yumupira

S6061Q- (04 ~ 32) D.

Guhindura ubufasha bwa S6064 (DN15-DN150) -S6061Q Imipira yumupira w'amashanyarazi

S6061 ikurikirana ya damper actuator irashobora kugira ibyuma 2 bifasha gushiraho inguni muri 0-90 ° kubimenyetso bisohoka.Nyamuneka shyira inguni nkuko amabwiriza abiteganya.

s6064-dn15-dn150-s6061q-amashanyarazi-umupira-imipira-5

3 （1.5） Amp 220V

Imashini iri muri 250V

S6061Q- (08 ~ 32) Icyerekezo cyo kugenzura no kuzunguruka Icyerekezo cya S6064 (DN15-DN150) -S6061Q Imipira yumupira w'amashanyarazi

s6064-dn15-dn150-s6061q-amashanyarazi-umupira-imipira-6

Ibipimo bya S6064 (DN15-DN150) -S6061Q Imipira yumupira w'amashanyarazi

Igice （mm）

Icyitegererezo	G	H (mm)	H1 (mm)	L (mm)	S (mm)
S6064-2015	G1 / 2	165	37.5	60	-
S6064-2020	G3 / 4	165	44	73	-
S6064-2025	G1	170	47	89	-
S6064-2032	G1-1 / 4	175	52.5	102.5	-
S6064-2040	G1-1 / 2	180	57	113	-
S6064-2050	G2	185	62	127.5	-
S6064-3015	G1 / 2	165	39	60	30.5
S6064-3020	G3 / 4	165	44	66	32
S6064-3025	G1	170	47	89	46.5
S6064-3032	G1-1 / 4	175	52.5	98.5	49
S6064-3040	G1-1 / 2	180	57	106	52
S6064-3050	G2	185	62	123	69

Icyitonderwa: DN15 ~ 50 koresha BSPP Icyongereza gisanzwe kibangikanye imiyoboro ihuza imiyoboro.

s6064-dn15-dn150-s6061q-amashanyarazi-umupira-imipira-7

Icyitegererezo	Flange	L (mm)	D (mm)	H (mm)	nd
S6064-2065	145	97	105	136	4-18
S6064-2080	160	108	125	140	8-18
S6064-2100	175	120	145	104	8-18
S6064-2125	200	145	175	115	8-18
S6064-2150	230	165	205	138	8-18
