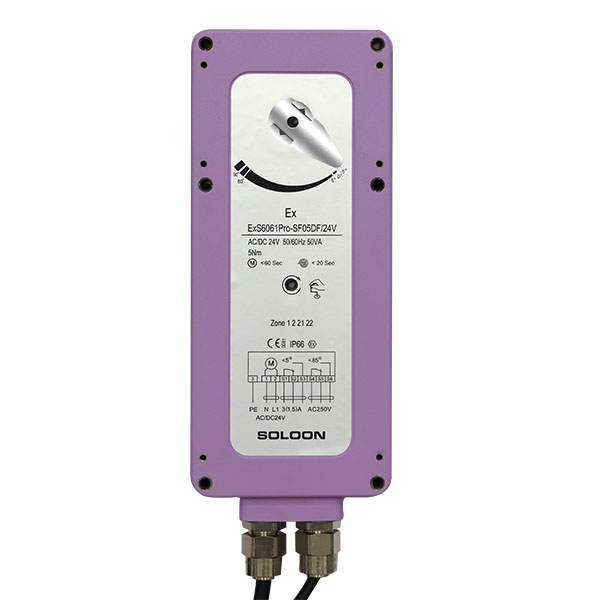

ExS6061SF-05/10/15 Explosion-proof Actuator

The product is designed to use in HVAC professionals, especially specialized in dangerous environments, such as explosive air and dust. Explosion-proof Mark Ex db ⅡB T6 Gb Ex tb IIIC T85°C Db Application zone 1 and 2 Dust environment zone 21 and 22

ExS6061SF-05/10/15 Explosion-proof Actuator

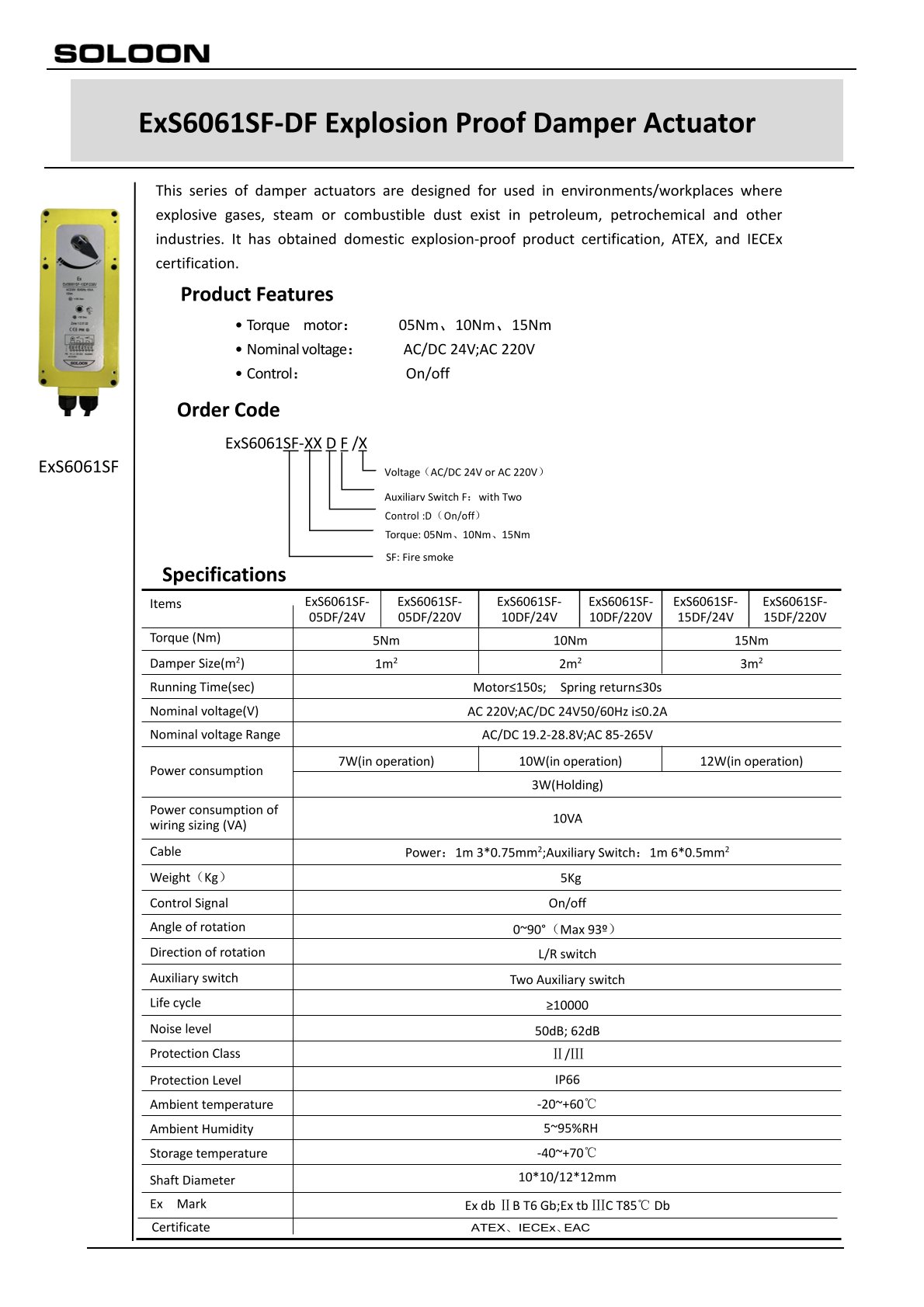

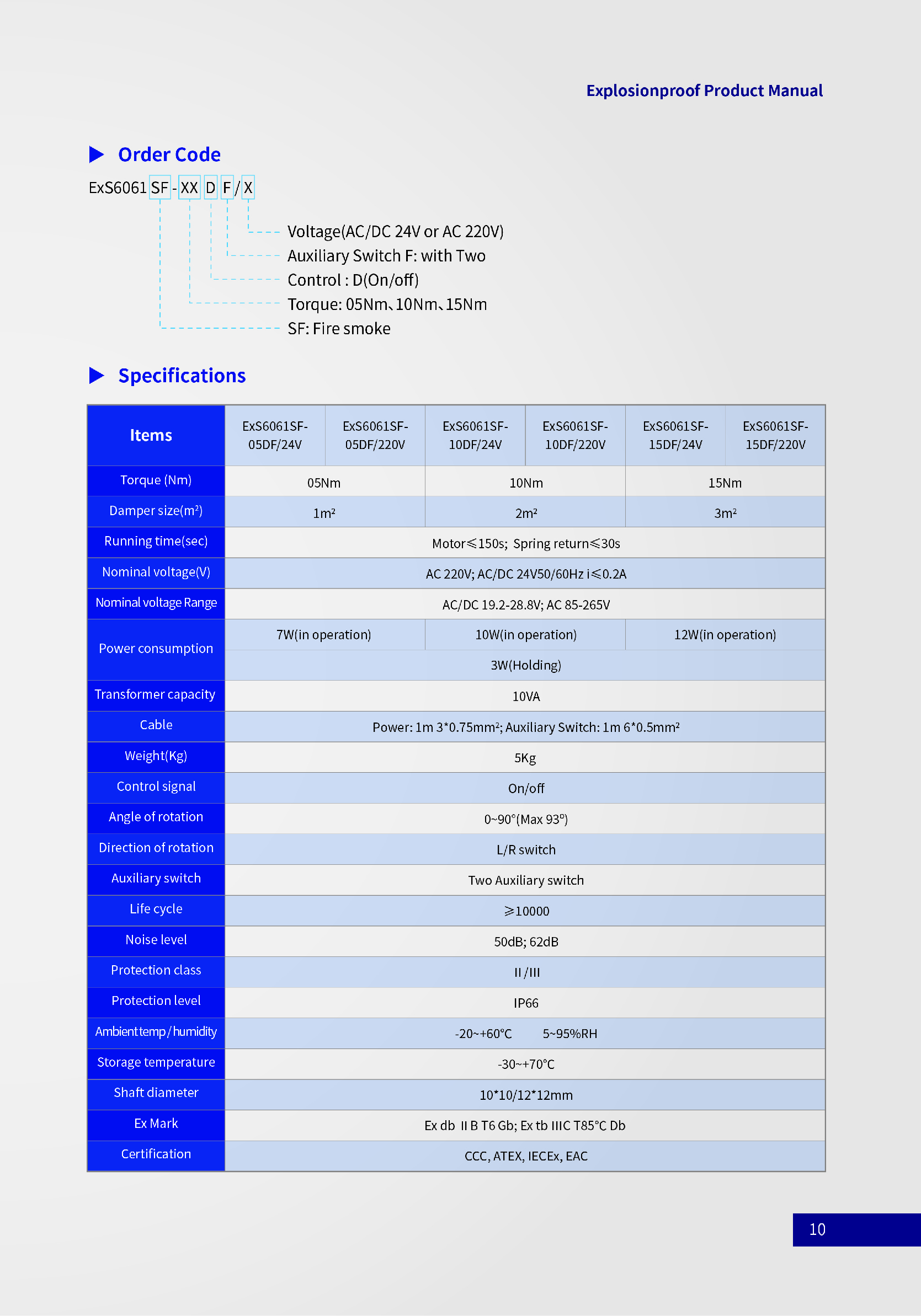

Specification of ExS6061SF-05/10/15DF/24(230)V




ExS6061SF-05DF/24V ExS6061SF-05DF/230V ExS6061SF-10DF/24V ExS6061SF-10DF/230V ExS6061SF-15DF/24V ExS6061SF-15DF/


Torque 5Nm 10Nm 15Nm
Damper Size 1m2 3m2 4.5m2
Power Supply AC220V AC24V DC24V 50/60Hz i ≤0.2A

AC220V 50/60Hz

Consumption 7W run/3W remain 10W run/3W remain 12W run/3W remain
Wire Size 10VA
Connection cable Power:1m cable 3*0.5 m2
Auxiliary Switch (F):1m cable 6*0.5 m2
Running Time Motor≤150s;Spring Return≤30s
Angle of Rotation Max 93º
Position Indication Mechanical indicator
Weight 5Kg
Life Cycle ≥10000 cycles
Sound Level 50dB(A)and62dB(A)
Protection Level Ⅲ(safety low voltage) Ⅱ(full insulation)
IP Protection IP66
Ambient Temperature -20~+60℃
Ambient Humidity 5~95%RH
Explosion-proof Mark Ex db ⅡB T6 Gb

Ex tb IIIC T85°C Db


Features of ExS6061SF-05/10/15 Explosion-proof Actuator


  • Single control
  • Form-fit 12x12cm shaft
  • Universal shift plug
  • Two auxiliary switches
  • Cast aluminum housing, compacting type
  • Safety meets IP66

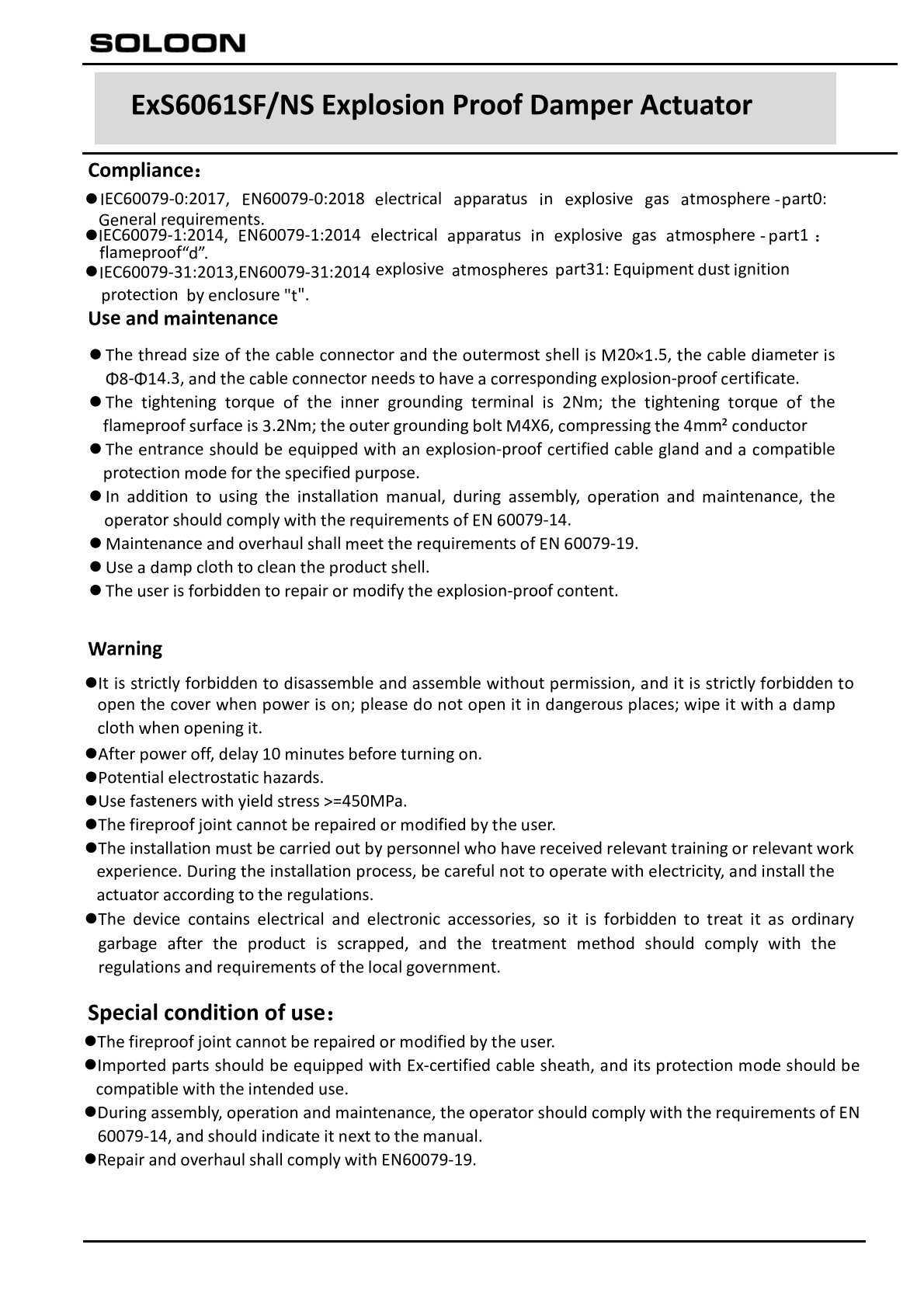

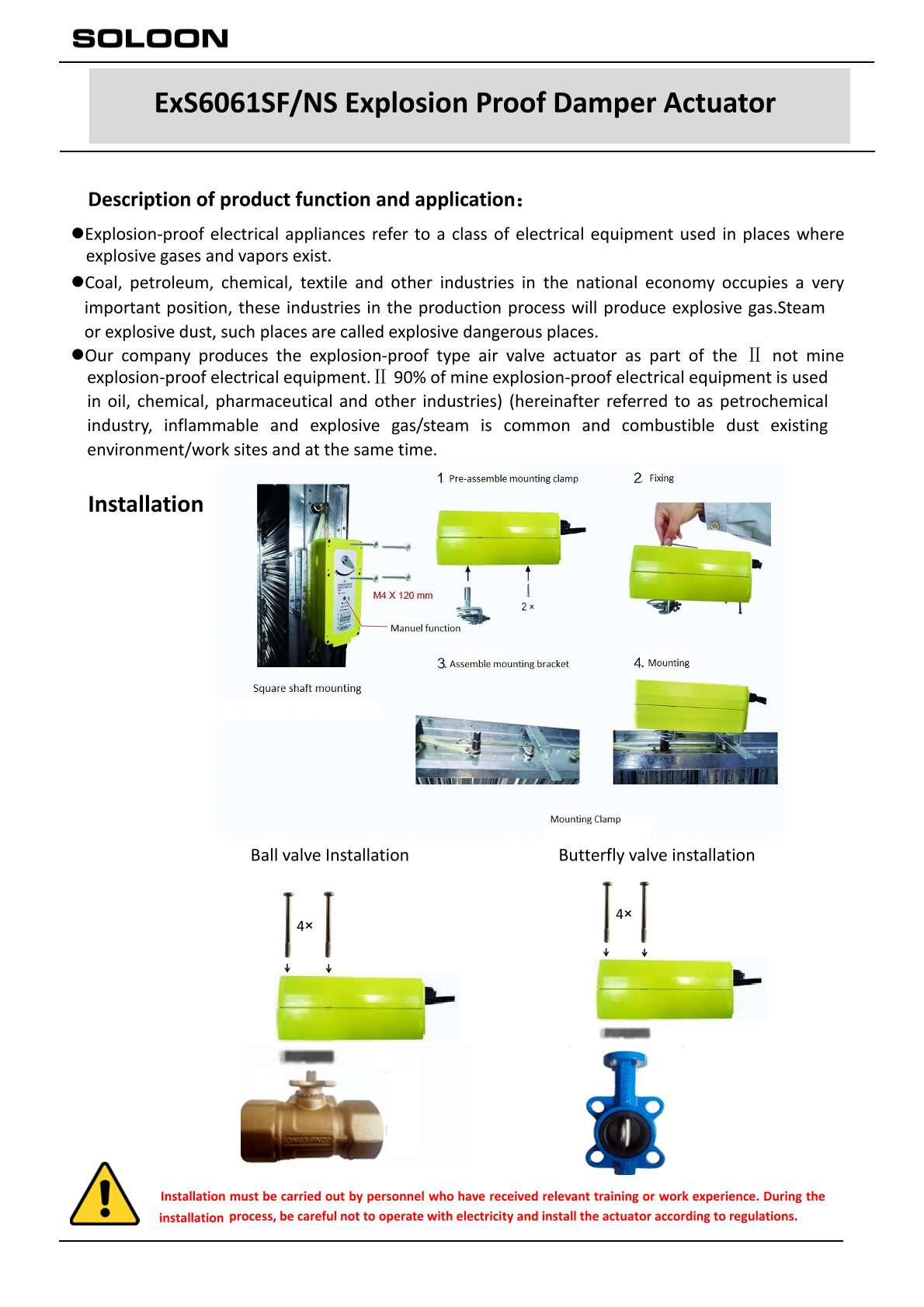

Compliances of ExS6061SF-05/10/15 Explosion-proof Actuator


  • IEC60079-0:2017, EN60079-0:2012+A11:2013 electrical apparatus in explosive gas atmosphere – part0: General requirements.
  • IEC60079-1:2014 ;EN60079-1:2007 electrical apparatus in explosive gas atmosphere – part1:flameproof“d”.
  • IEC60079-31:2013,EN60079-31:2014 explosive atmospheres part31: Equipment dust ignition protection by enclosure “t”. Usage and maintenance
  • Cable connector and the housing mating thread size M16 × 1.5, cable diameter size Φ6-Φ8. When the equipment is used on-site, the cable gland should be installed by the user, whose protection grade should not be lower than Ⅱ2D Ex tb IIIC T85°C Db.
  • Within ground terminal tightening torque 2N.m.
  • Flameproof joint tightening torque is 3.2N.m.
  • External ground bolt M4X6, pressing 4mm² conductors.
  • Disassembly is prohibited without permission Do not open with power. please do not open the cover in the explosive gas. Need to use a damp cloth when opening.l
  • Repair of the flanged joints must be made in compliance with the structural specifications provided by the manufacturer. Repairs must not be made on the basis of values specified in table 3 and table 4 of EN 60079-1:2007.
  • The entry shall be equipped with Ex certified cable glands with a compatible mode of protection for the intended use.
  • When assembly, operation and maintenance, the operator should follow the requirements of EN 60079-14, besides the instruction manual.
  • Repair and overhaul shall comply with EN 60079-19.

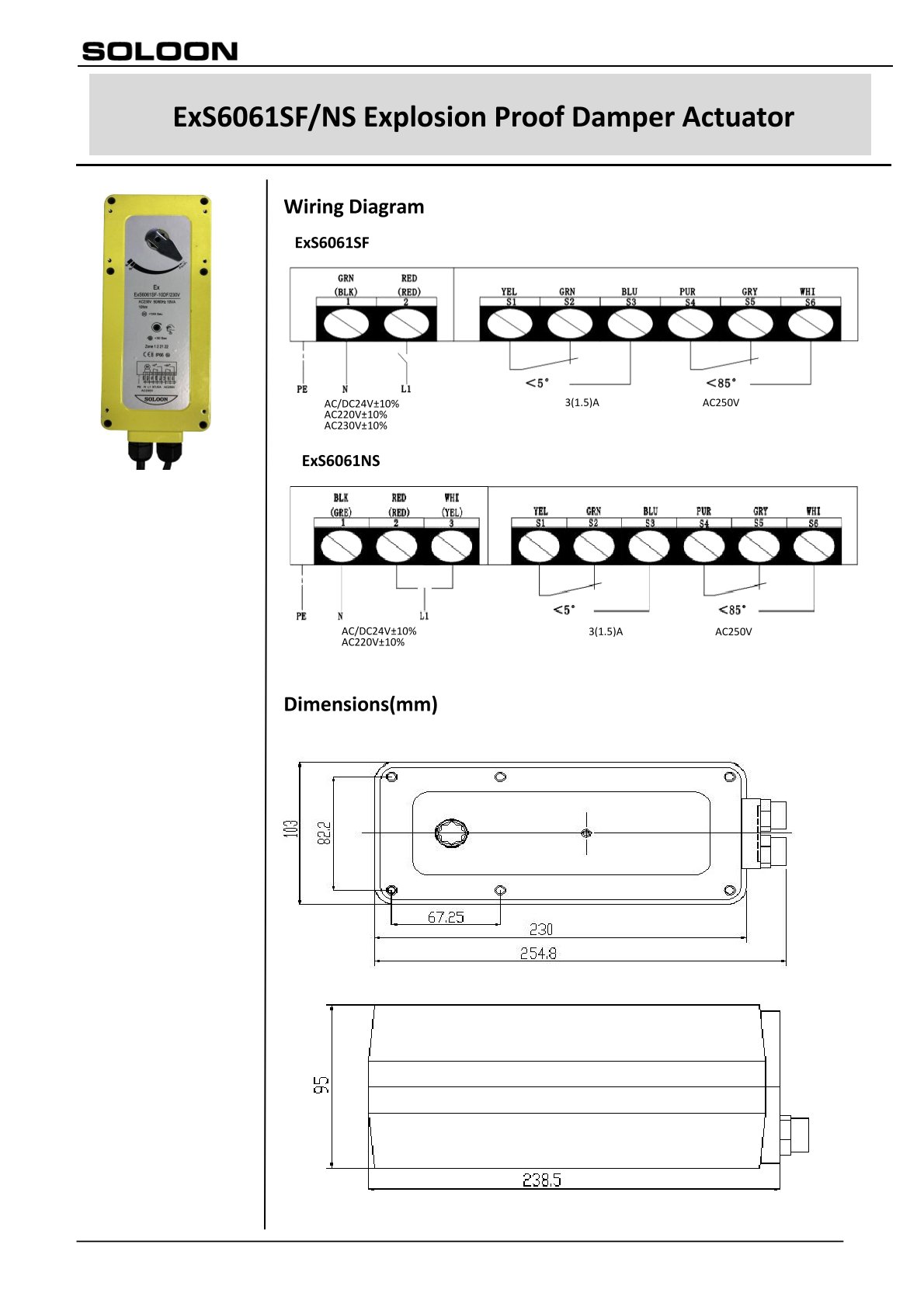

Electrical Connection and Outline of ExS6061SF-05/10/15 Explosion-proof Actuator


exs6061ns-10-20-30-explosion-proof-actuator_3 exs6061ns-10-20-30-explosion-proof-actuator_4
