S6025 Fluid Level Switch

S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator

The damper actuator is specially designed for small and middle air damper and terminal control unit of air volume system. Due to the small size and flexible control, also usually used in space where is limited.

S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator

Features of S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator



  • ON/OFF
  • Shaft size up to 12*12mm
  • Two fixed auxiliary switches
  • With IP54 standard
  • Manuel Override

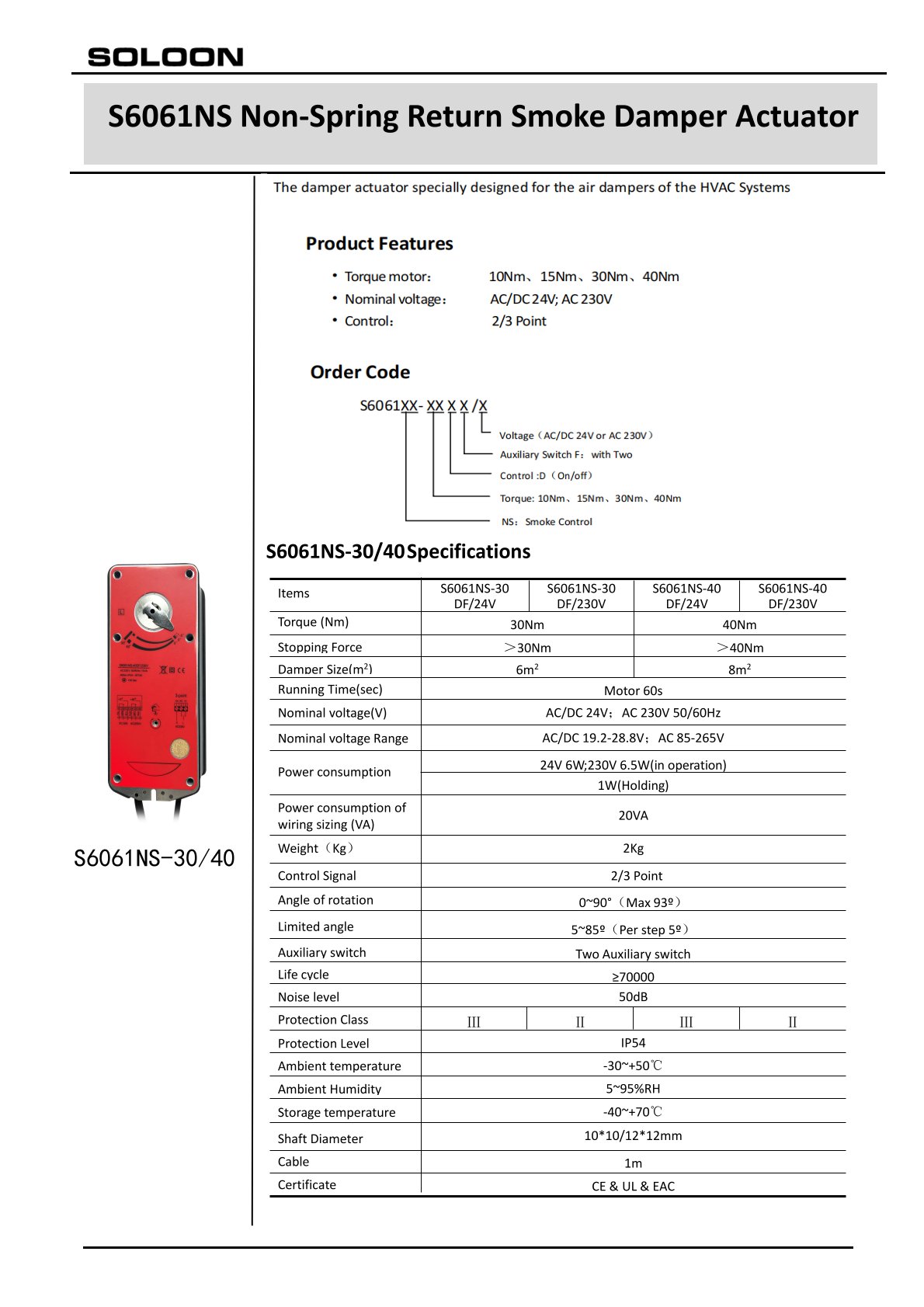

Technical Datasheet of S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator



Item S6061NS-30DF/24V S6061NS-30DF/230V S6061NS-40DF/24V S6061NS-40DF/230V
Torque 30Nm 40Nm
Damper area 5 8
Running time 100~120 100~120
Power supply 24VAC/DC 50/60Hz 230VAC 50/60Hz
Operating Power Consumption 6W 6.5W 6W 6.5W
At end stops Power Consumption 1W
Wire size 10.5
Weight 2.5Kg
Control signal 2/3 point
Rotation angle 0~90°（Max 93º）
Auxiliary switch rating 3（1.5）Amp 250V
Life cycle 70000
Noise Level 50dB(A)
Electric level Ⅲ Ⅱ Ⅲ Ⅱ
IP protection IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5~95%RH
Storage temperature -40~+70℃
Certificate CE & UL

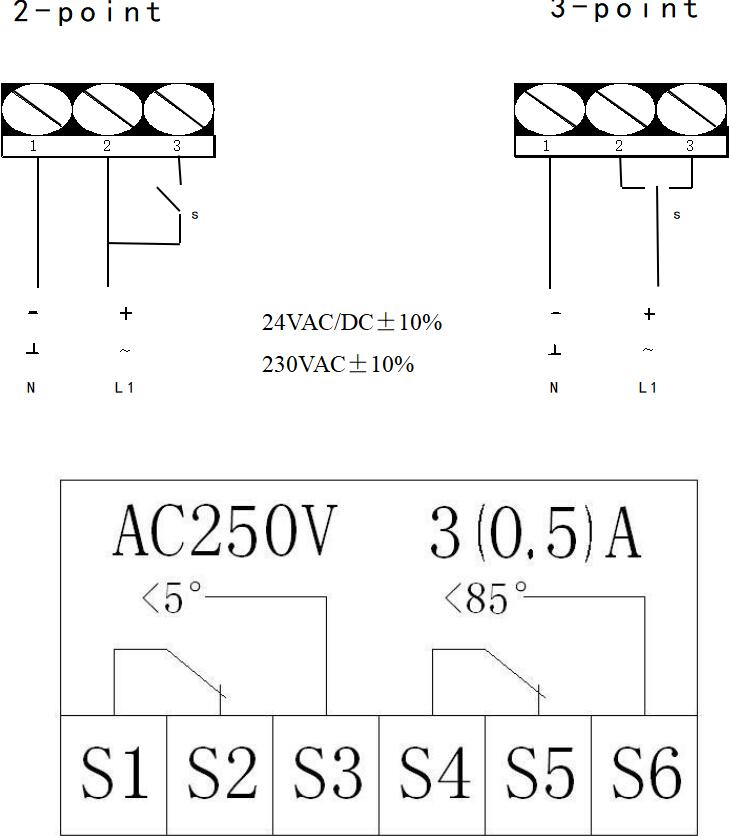

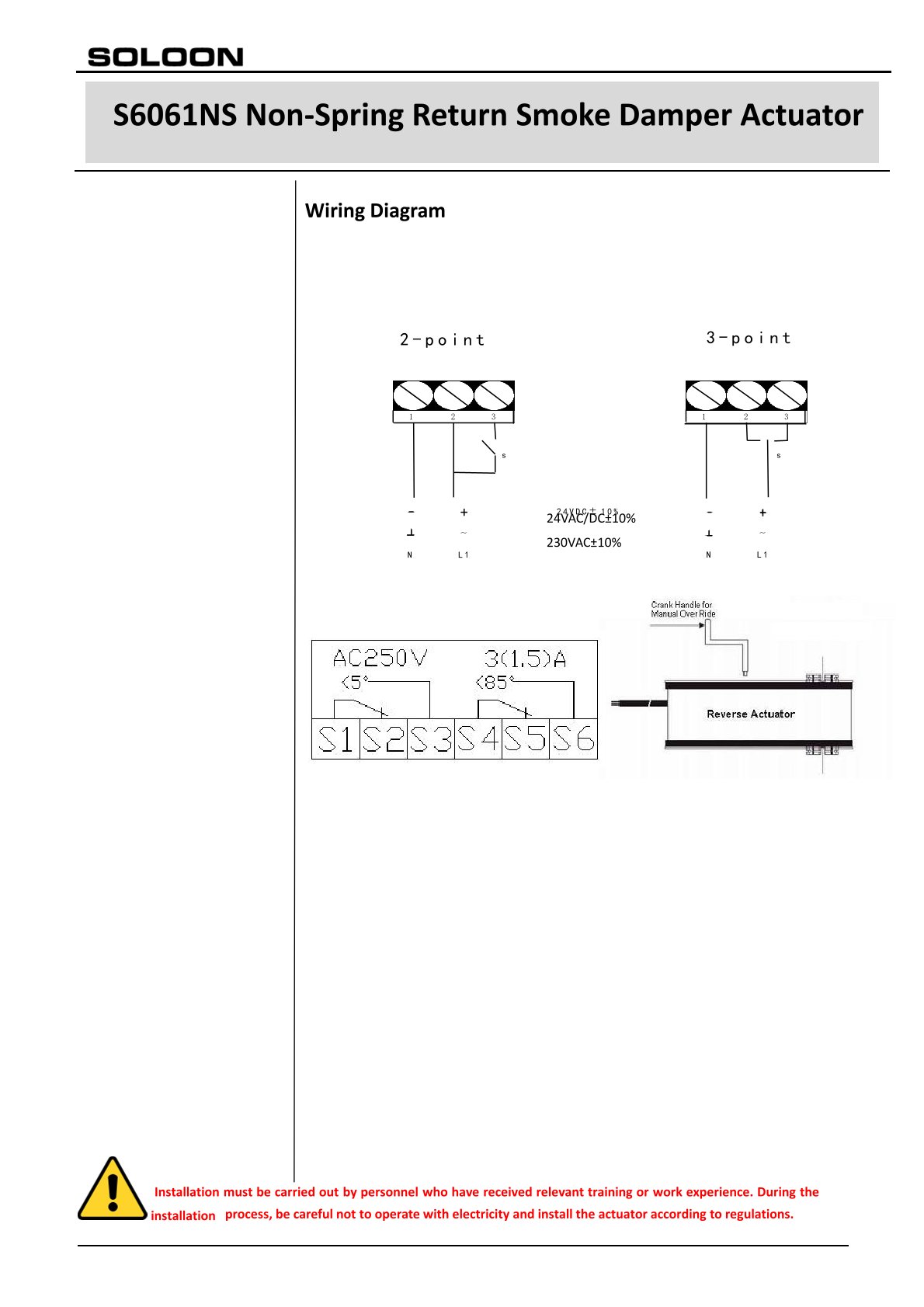

Wiring Diagram of S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator



s6061ns-30-40df-non-spring-fire-smoke-damper-actuator-2

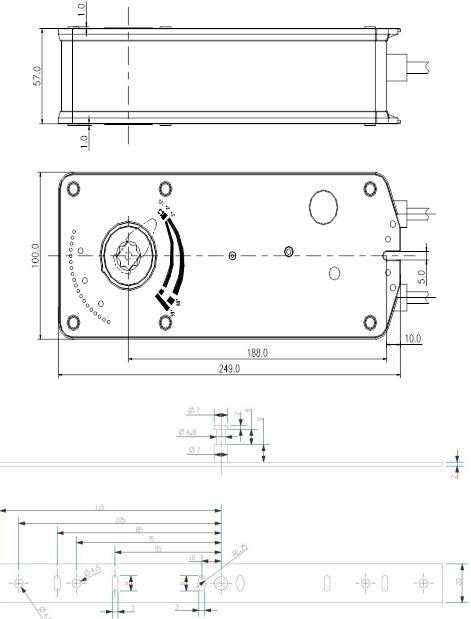

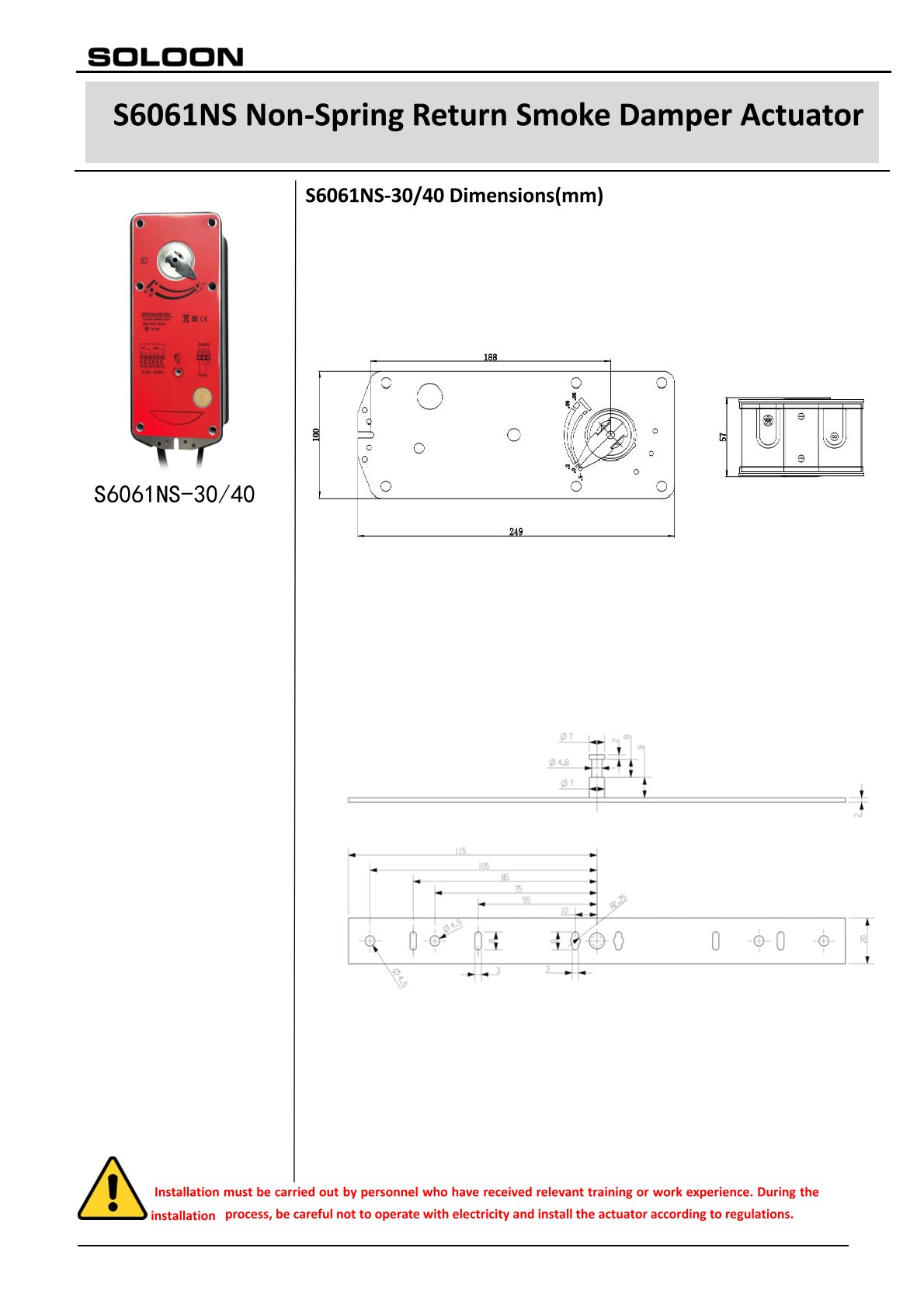

Dimension of S6061NS-30/40DF Non-spring Fire Smoke Damper Actuator

s6061ns-30-40df-non-spring-fire-smoke-damper-actuator-3

What is HVAC Air Duct Damper Actuator?

The Function of HVAC Air Duct Damper Actuator
