S6025 Fluid Level Switch

S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)

Specially designed for small and medium air damper and control unit used in air volume system. Because of its small size and flexible control, it usually used in such places where the space is limited.

S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)

Features of S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)



  • ON/OFF or 0-10V
  • Shaft size: Max.φ12mm.
  • Direction of rotation can be setting.
  • Two Optional Auxiliary Switches
  • IP 54 standard.
  • Without Manuel Override



Technical Datasheet of S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)



Item S6061SC-2.5DN(F)/24V S6061SC-2.5DN(F)/230V S6061SC-2.5AN(F)/24V
Torque 2.5Nm
Damper area 0.5m2
Running time Motor 60~70S;Spring return25~30S
Power supply 24VAC/DC 50/60Hz;230VAC 50/60Hz
Operating Power Consumption 2.5W
At end stops Power Consumption 1.6W
Wire size 10VA 7VA
Weight 1.1Kg
Control signal On/off 0~10V
Rotation angle 0~90°(Max 93º)
Limited angle 5~85º(Per step 5º)
Auxiliary switch rating 3(1.5)Amp 250V
Life cycle 70000
Noise level 50dB(A) and 65dB(A)
Electric level
IP Protection IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5~95%RH
Storage temperature -40~+70℃
Certificate CE

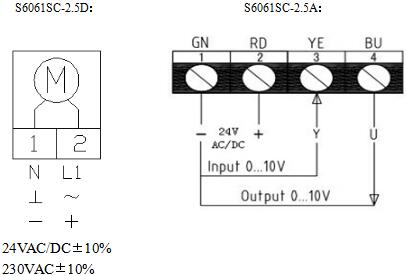

Wiring Diagram of S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)

s6061sc-2.5nm-spring-return-damper-actuator-fail-safe-damper-actuators-2

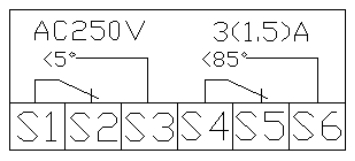

Auxiliary Switch of S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)



s6061sc-2.5nm-spring-return-damper-actuator-fail-safe-damper-actuators-3



S6061SC-2.5 series

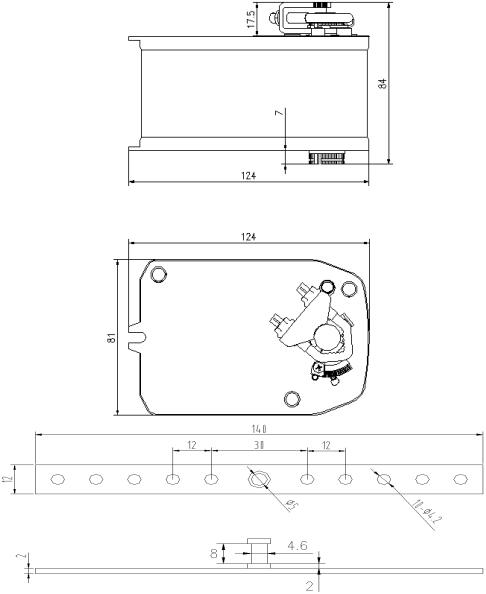

Dimension of S6061SC-2.5Nm Spring Return Damper Actuator (Fail-Safe Damper Actuators)

s6061sc-2.5nm-spring-return-damper-actuator-fail-safe-damper-actuators-4
