Electric Spring Return Damper Actuator is a fail-safe device for HVAC systems. It features fast spring return (<30 seconds) for emergency closing or opening during power failure, and motor control (<70 seconds) for normal operation. Ideal for fire safety, smoke management, and critical air control applications.
| Items |
S6061SC-05DN(F)/ 24V |
S6061SC-05DN(F)/230V |
S6061SC-05AN(F)/ 24V |
| Torque（Nm） |
5Nm |
||
| Damper Size（m2） |
1m2 |
||
| Running Time（sec） |
Motor＜70s；Spring Return＜20s |
Motor＜120s；Spring Return＜20s |
|
| Nominal Voltage（V） |
AC/DC 24V；50/60Hz |
AC 230V；50/60Hz |
AC/DC 24V；50/60Hz |
| Supply Voltage range |
AC/DC 19.2-28.8V |
AC 85-265V |
AC/DC 19.2-28.8V |
| Power consumption（on） |
5W |
||
| Power consumption（off） |
2.5W |
||
| Reactive Power（VA） |
5 |
||
| Weight （Kg） |
1.4Kg |
||

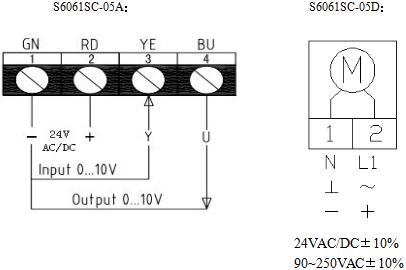

| Control Signal |
2 point |
0~10V |
|
| Rotation Angle |
0~90°（Max 93º） |
||
| Limited Angle |
5~85º（ by 5º） |
||

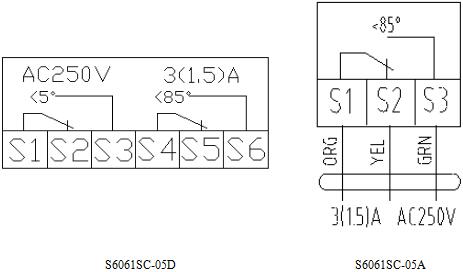

| Positional Feedback |
None or 2 Auxiliary Switches |
None or 1 Auxiliary Switch |
|
| Life Cycle |
≥70000 |
||
| Sound Power level |
50dB and 62dB |
||
| Electrical Protection Class |
Ⅲ |
Ⅱ |
Ⅲ |
| Ingress Protection |
IP54 |
||
| Ambient Temperature |
-30~+55℃ |
||
| Ambient Humidity |
5~95%RH |
||
| Storage Temperature |
-40~+80℃ |
||
| Shaft Diameter | 12-20mm, pair with Shaft Block 2 for smaller shafts | ||
| Accessories |
With 1m cable |
||
| Compliance |
CE、UKCA、UL、EAC、RoHS certificates |
||
