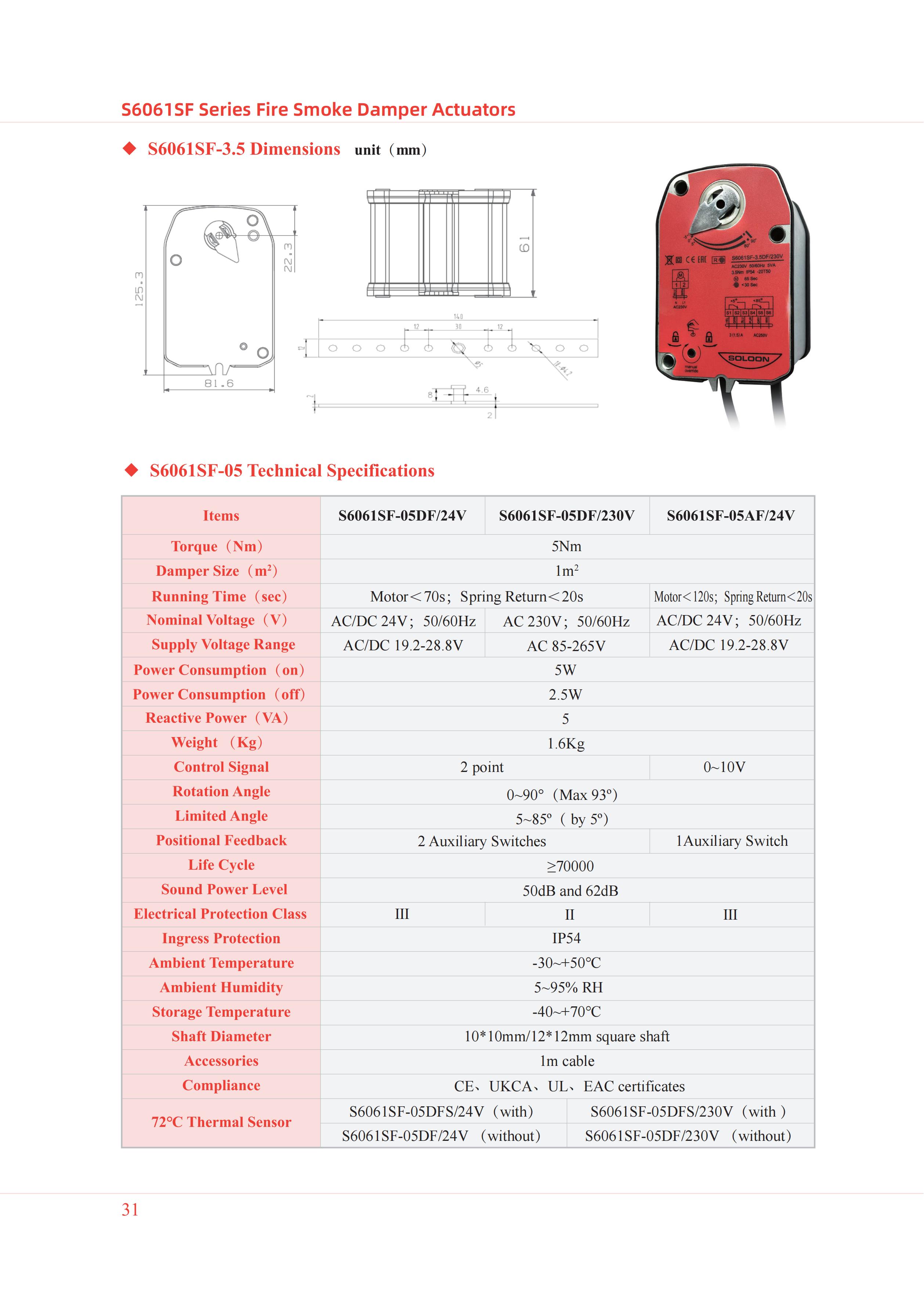

Designed for critical fire and smoke damper applications in HVAC systems, the S6061SF Series delivers robust spring return actuation with a torque range spanning 3.5Nm to 20Nm, accommodating damper sizes from 0.8m² and 20m².
| Items |
S6061SF-05DF/24V |
S6061SF-05DF/230V |
S6061SF-05AF/24V |
|||
| Torque(Nm) |
5Nm |
|||||
| Damper Size(m2) |
1m2 |
|||||
| Running Time(sec) |
Motor＜70s；Spring Return＜20s |
Motor＜120s；Spring Return＜20s |
||||
| Nominal Voltage(V) |
AC/DC 24V；50/60Hz |
AC 230V；50/60Hz |
AC/DC 24V；50/60Hz |
|||
| Supply Voltage Range |
AC/DC 19.2-28.8V |
AC 85-265V |
AC/DC 19.2-28.8V |
|||
| Power Consumption (on) |
5W |
|||||
| Power Consumption (off) |
2.5W |
|||||
| Reactive Power(VA) |
5 |
|||||
| Weight (Kg) |
1.6Kg |
|||||
| Control Signal |
2 point |
0~10V |
||||
| Rotation Angle |
0~90°(Max 93º) |
|||||
| Limited Angle |
5~85º(by 5º) |
|||||
| Positional Feedback |
2 Auxiliary Switches |
1 Auxiliary Switch |
||||
| Life Cycle |
≥70000 |
|||||
| Sound Power Level |
50dB and 62dB |
|||||
| Electrical Protection Class |
Ⅲ |
Ⅱ |
Ⅲ |
|||
| Ingress Protection |
IP54 |
|||||
| Ambient Temperature |
-30~+55 °C, The maximum safe ambient operating temperature is 75 °C |
|||||
| Ambient Humidity |
5~95%RH |
|||||
| Storage Temperature |
-40~+80℃ |
|||||
| Shaft Diameter | 10*10mm/12*12mm square shaft | |||||
| Accessories |
1m cable |
|||||
| Compliance |
CE, UKCA, UL, EAC, RoHS certificates
|
|||||
|
72℃ Thermal Sensor |
S6061SF-3.5DFS/24V |
S6061SF-3.5DFS/230V |
||||
