Designed for critical fire and smoke damper applications in HVAC systems, the S6061SF Series delivers robust spring return actuation with a torque range spanning 3.5Nm to 20Nm, accommodating damper sizes from 0.8m² and 20㎡.

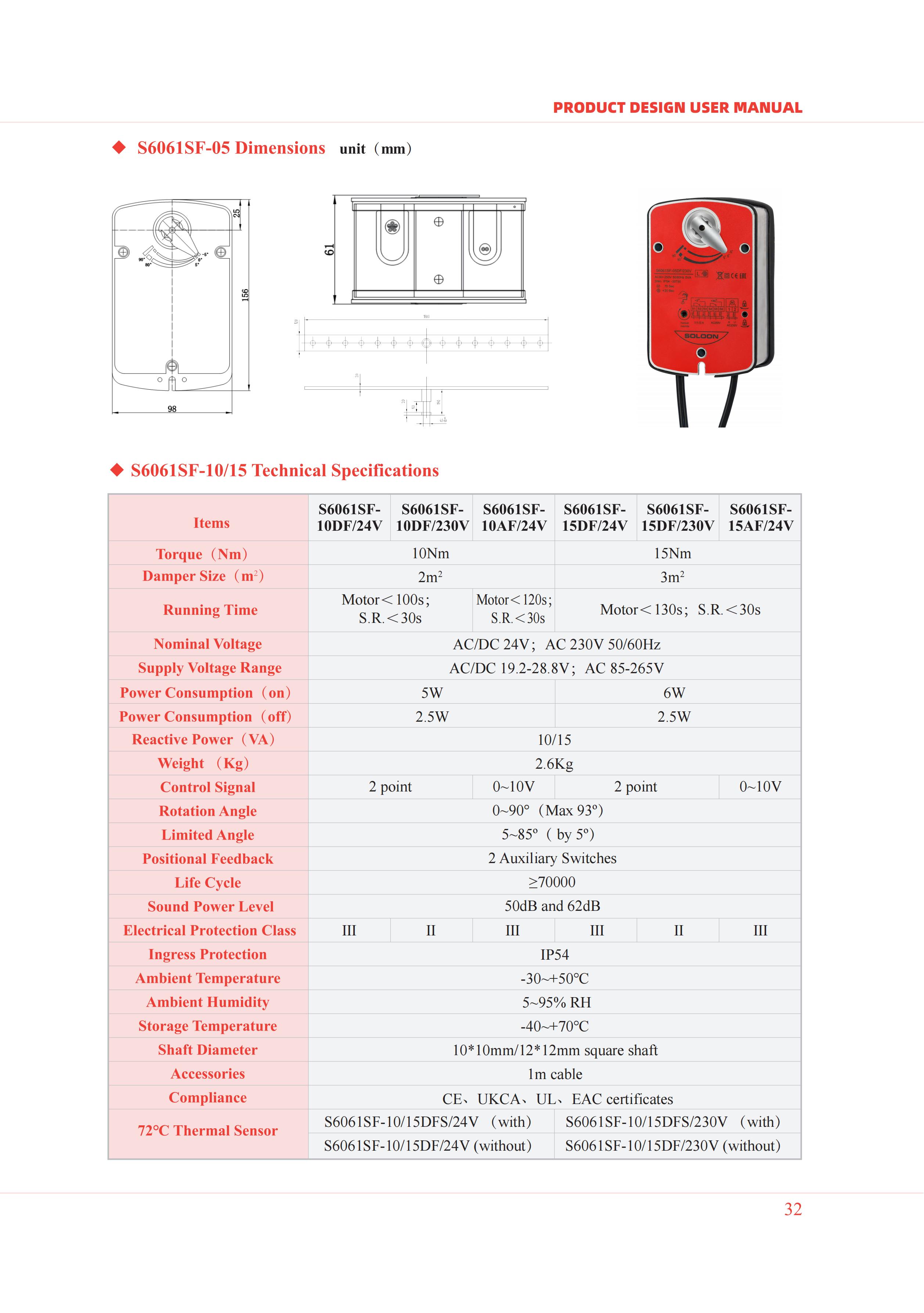

| Items |
S6061SF- |
S6061SF- |
S6061SF- |
S6061SF- |
S6061SF- |
S6061SF- |
|
| Torque(Nm) |
10Nm |
15Nm |
|||||
| Damper Size(m2) |
2m2 |
3m2 |
|||||
| Running Time (sec) |
Motor＜100s； |
Motor＜120s；S.R.＜30s |
Motor＜130s；S.R.＜30s |
||||
| Nominal Voltage (V) |
AC/DC 24V；AC 230V 50/60Hz |
||||||
| Supply Voltage Range |
AC/DC 19.2-28.8V；AC 85-265V |
||||||
| Power Consumption (on) |
5W |
6W |
|||||
| Power Consumption (off) |
2.5W |
2.5W |
|||||
| Reactive Power(VA) |
10/15 |
||||||
| Weight (Kg) |
2.6Kg |
||||||
| Control Signal |
2 point |
0~10V |
2 point |
0~10V |
|||
| Rotation Angle |
0~90°(Max 93º) |
||||||
| Limited Angle |
5~85º(by 5º) |
||||||
| Positional Feedback |
2 Auxiliary Switches |
||||||
| Life Cycle |
≥70000 |
||||||
| Sound Power Level |
50dB and 62dB |
||||||
| Electrical Protection Class |
Ⅲ |
Ⅱ |
Ⅲ |
Ⅲ |
Ⅱ |
Ⅲ |
|
| Ingress Protection |
IP54 |
||||||
| Ambient Temperature |
-30~+55 °C, The maximum safe ambient operating temperature is 75 °C |
||||||
| Ambient Humidity |
5~95%RH |
||||||
| Storage Temperature |
-40~+80℃ |
||||||
| Shaft Diameter | 10*10mm/12*12mm square shaft | ||||||
| Accessories |
1m cable |
||||||
| Compliance |
CE, UKCA, UL, EAC, RoHS certificates
|
||||||
|
72℃ Thermal Sensor
|
S6061SF-3.5DFS/24V |
S6061SF-3.5DFS/230V |
|||||
