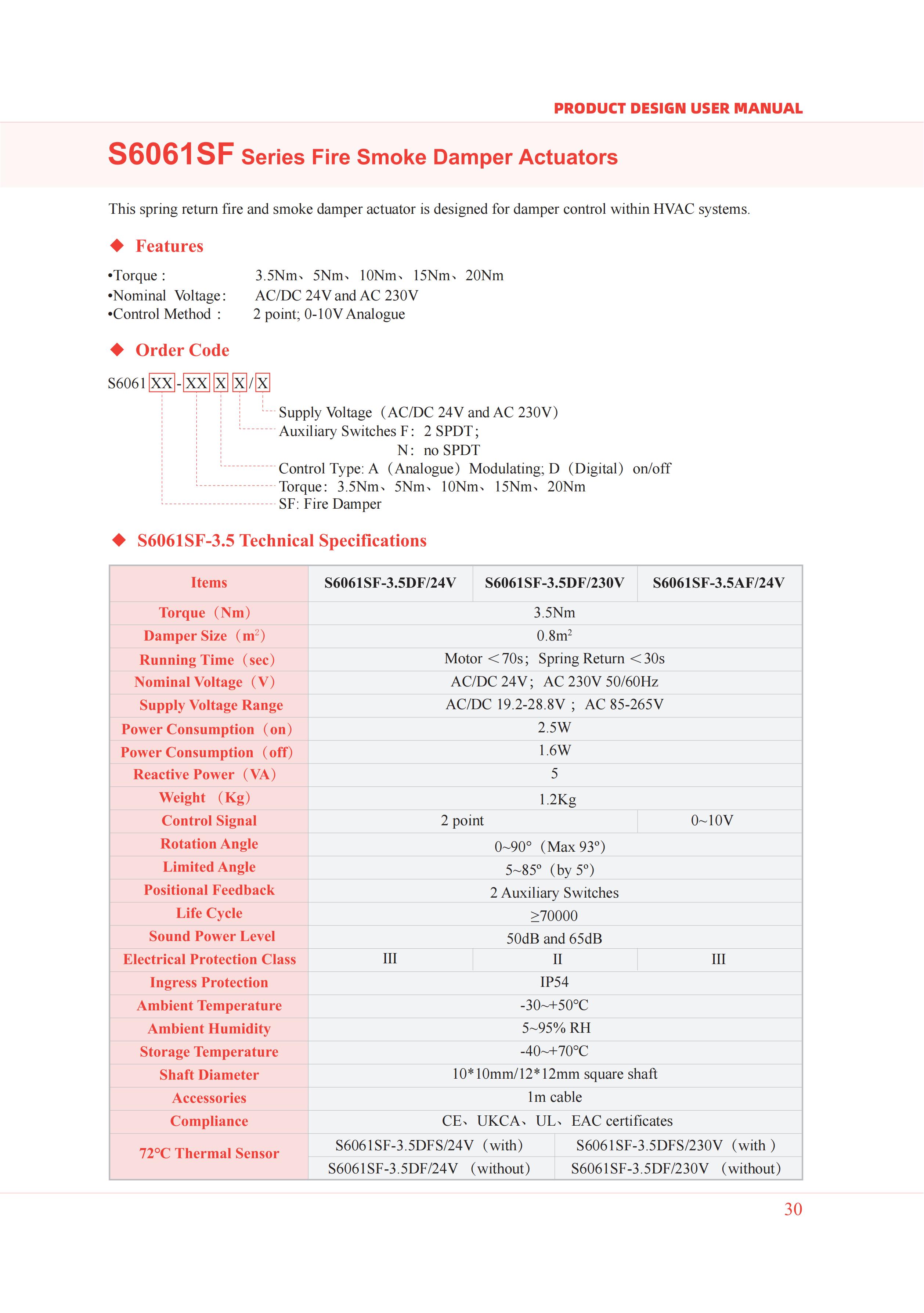

Designed for critical fire and smoke damper applications in HVAC systems, the S6061SF Series delivers robust spring return actuation with a torque range spanning 3.5Nm to 20Nm, accommodating damper sizes from 0.8m² and 20m².
| Items |
S6061SF-3.5DF/24V |
S6061SF-3.5DF/230V |
S6061SF-3.5AF/24V |
||||
| Torque(Nm) |
3.5Nm |
||||||
| Damper Size(m2) |
0.8m2 |
||||||
| Running Time(sec) |
Motor ＜70s；Spring Return ＜30s |
||||||
| Nominal Voltage(V) |
AC/DC 24V；AC 230V 50/60Hz
|
||||||
| Supply Voltage Range |
AC/DC 19.2-28.8V ；AC 85-265V |
||||||
| Power Consumption (on) |
2.5W |
||||||
| Power Consumption (off) |
1.6W |
||||||
| Reactive Power(VA) |
5 |
||||||
| Weight (Kg) |
1.2Kg |
||||||
| Control Signal |
2 point |
0~10V |
|||||
| Rotation Angle |
0~90°(Max 93º) |
||||||
| Limited Angle |
5~85º(by 5º) |
||||||
| Positional Feedback |
2 Auxiliary Switches |
||||||
| Life Cycle |
≥70000 |
||||||
| Sound Power Level |
50dB and 62dB |
||||||
| Electrical Protection Class |
Ⅲ |
Ⅱ |
Ⅲ |
||||
| Ingress Protection |
IP54 |
||||||
| Ambient Temperature |
-30~+55 °C, The maximum safe ambient operating temperature is 75 °C |
||||||
| Ambient Humidity |
5~95%RH |
||||||
| Storage Temperature |
-40~+80℃ |
||||||
| Shaft Diameter |
10*10mm/12*12mm square shaft |
||||||
| Accessories |
1m cable |
||||||
| Compliance |
CE, UKCA, UL, EAC, RoHS certificates
|
||||||
| 72℃ Thermal Sensor |
S6061SF-3.5DFS/24V |
S6061SF-3.5DFS/230V |
|||||
