NEW ExS6011-T: 3-in-1 Certified Ex-Proof Switch

ExS6011-T Series Explosion-proof Dual Temperature Switch

— Reliable Overtemperature Protection for Dampers in Hazardous Areas

I. Product Positioning

The ExS6011-T series explosion-proof dual temperature switch is specifically designed for workplaces with explosive hazardous gases, vapors, or combustible dust, such as oil and petrochemical facilities. Used in conjunction with explosion-proof damper actuators, it provides overtemperature safety protection for damper systems.

The product holds three major certifications: China Explosion-Proof Certification, EU ATEX Certification, and International IECEx Certification, allowing installation in major hazardous areas worldwide.

II. Key Features

Two optional actuation temperatures: 72℃ or 150℃, adapting to different process scenarios

Universal power supply: supports AC/DC 24V and AC 110–240V

High protection rating IP66: dust-tight and protected against powerful water jets, suitable for outdoor and harsh conditions

Explosion-proof marking: Ex db ⅡC T6 Gb / Ex tb ⅢC T85℃ Db — covers Zone 1/Zone 2 gas hazardous areas and Zone 21/Zone 22 dust hazardous areas, meeting the highest safety grades

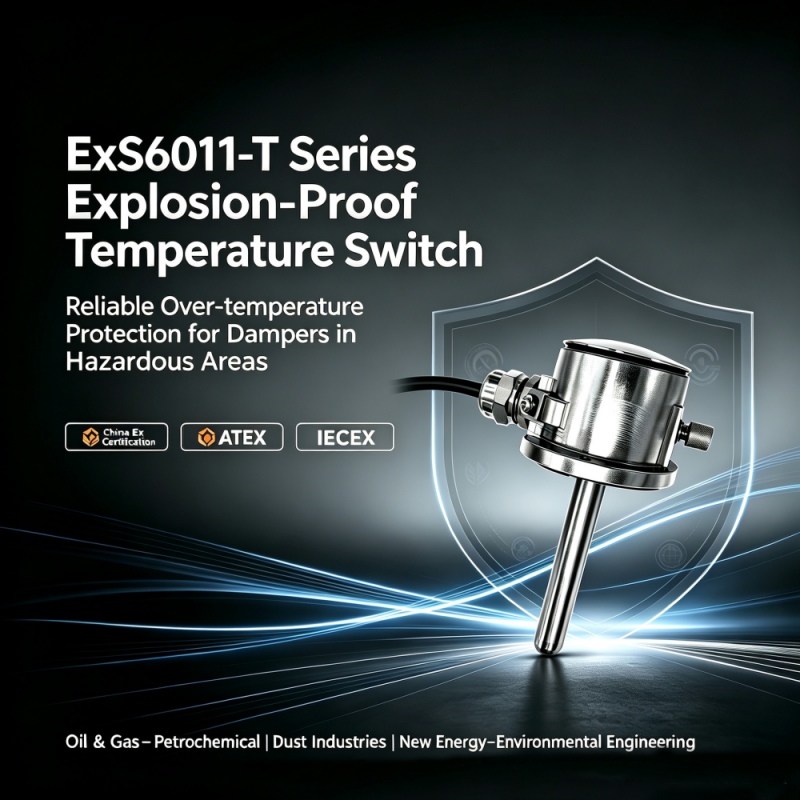

ExS6011-T series explosion-proof dual temperature switch

III. Operating Principle

Under normal conditions, both TS1 and TS2 remain closed, and the actuator operates normally with power supplied.

When the ambient or duct temperature exceeds the set point → TS1 or TS2 opens → actuator loses power → damper returns to the safe position

IV. Certifications & Standards

The product complies with the following major standards, with a complete certification chain:

Gas environments:

IEC 60079-0:2017 / EN 60079-0:2018 — General requirements
IEC 60079-1:2014-08 / EN 60079-1:2014 — Flameproof enclosure “d”

Dust environments:

IEC 60079-31:2022 / EN 60079-31:2014 — Enclosure “t” dust ignition protection

Certificates held: China Explosion-Proof Certification + ATEX + IECEx

V. Typical Applications

Industry	Applications
Oil & Gas	Refinery heater dampers, tank ventilation, oil/gas recovery systems
Petrochemical	Drying equipment, VOCs treatment system dampers
Dust-prone industries	Grain/feed processing, pharmaceuticals, paint shops, metal powder handling
New energy	Lithium battery plants, hydrogen facility ventilation
Environmental engineering	RTO/RCO waste gas treatment, waste incineration ventilation
Marine & offshore	Hazardous-area ventilation on tankers/drilling platforms

In a nutshell: Wherever there are explosion-proof dampers, an explosion-proof temperature switch is needed for overtemperature protection.

VI. Selection Guide

Operating Condition	Recommended Model
Low normal duct temperature, early warning required	72℃
High-temperature processes, hot-air recirculation, drying/curing equipment	150℃

Selection principle: The actuation temperature should be higher than the normal operating temperature but lower than the maximum temperature the equipment can withstand.

VII. Installation & Safety Instructions

Installation requirements:

Must be installed by trained or experienced personnel
Never perform work with power on; strictly follow installation procedures
Cable glands must bear the corresponding explosion-proof certification
Tightening torque for flameproof joints: 5.5 Nm

Safety warnings:

Never open the cover while energized; do not disassemble or modify without authorization
Wait 25 minutes after power-off before opening the cover; wipe with a wet cloth (anti-static) when opening
Flameproof mating surfaces must not be repaired or modified by the user
Contains electrical/electronic components — dispose of as e-waste per local regulations; do not discard as ordinary waste
Not applicable in areas affected by charge generation, mechanical friction, separation processes, electron emission, or pneumatic dust conveying

VIII. Why Choose the ExS6011-T Series?

Advantage	Value
Triple international certifications	One product, global use — simplified procurement
Two temperature options	Adapts to low- or high-temperature processes
IP66 protection	Suited for outdoor, dusty, humid, and harsh conditions
Universal power supply	Compatible with various supply voltages worldwide
Long-life design	Manual operation ≥ 1,000 cycles — reduced maintenance

Wherever there are explosion-proof dampers, the ExS6011-T explosion-proof temperature switch has its place.

Welcome to contact us for samples or technical selection support.
