Electric Fast Running Damper Actuator is a high-speed device that rapidly modulates dampers in HVAC systems. It converts control signals into quick mechanical motion—typically completing a 90° stroke in seconds—for real-time airflow adjustment.

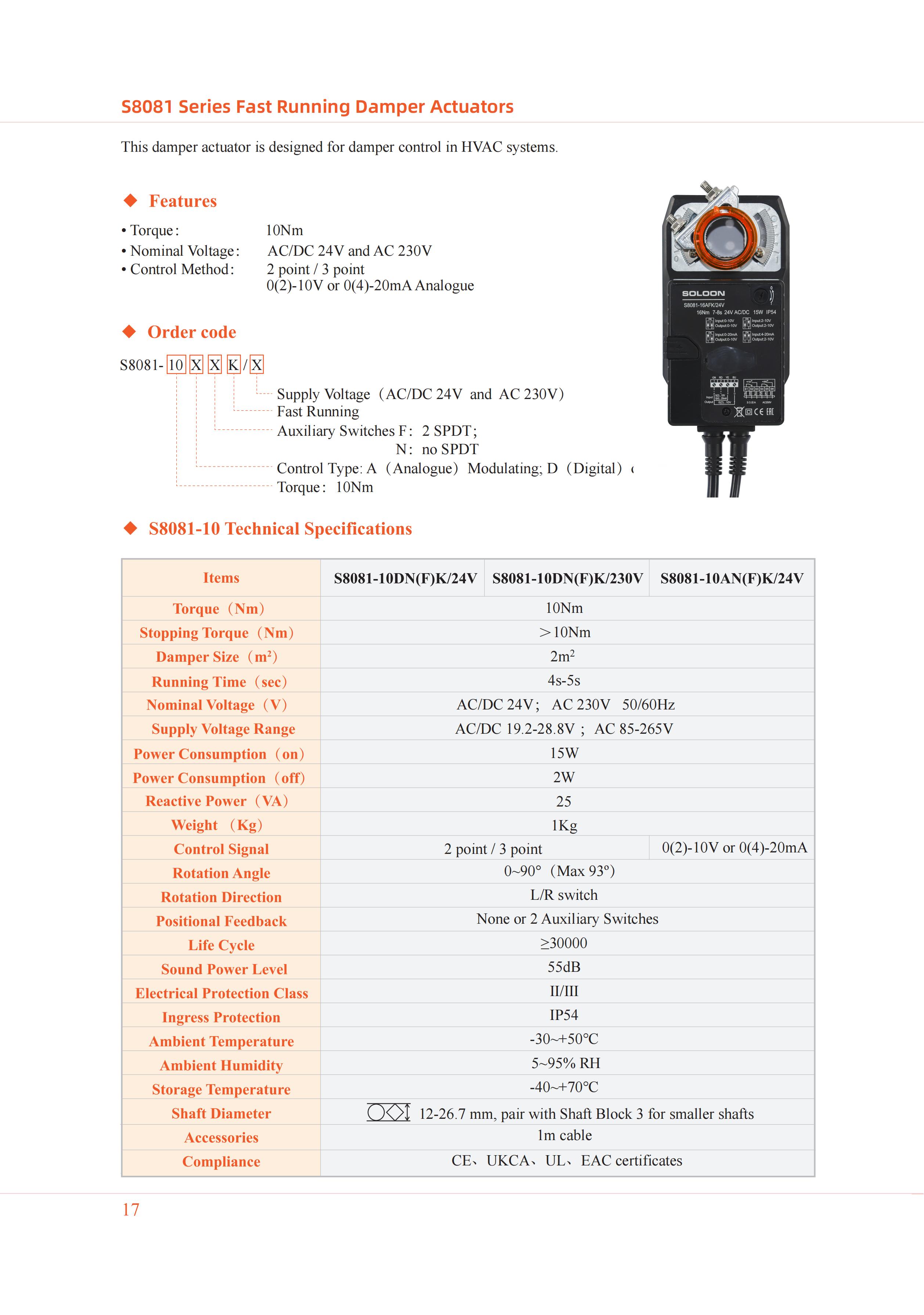

S8081-10 Technical Specification
| Items | S8081-10DN(F)K/24V | S8081-10DN(F)K/230V |
S8081-10AN(F)K/24V |
| Torque（Nm） |
10Nm |
||
| Stopping Torque（Nm） |
＞10Nm |
||
| Damper Size（m2） |
2m2 |
||
| Running Time（sec） |
4s-5s |
||
| Nominal Voltage（V） |
AC/DC 24V； AC 230V 50/60Hz |
||
| Supply Voltage range |
AC/DC 19.2-28.8V ；AC 85-265V |
||
| Power consumption（on） |
15W |
||
| Power consumption（off） |
2W |
||
| Reactive Power（VA） |
25 |
||
| Weight （Kg） |
1Kg |
||
| Control Signal |
2 point / 3 point |
0(2)-10V or 0(4)-20mA Analogue |
|
| Rotation Angle | 0~90°（Max 93º） | ||
| Rotation Direction |
L/R switch |
||
| Positional Feedback |
Non or 2 Auxiliary Switches |
||
| Life Cycle |
≥30000 |
||
| Sound Power level |
55dB |
||
| Electrical Protection Class |
Ⅱ/Ⅲ |
||
| Ingress Protection |
IP54 |
||
| Ambient Temperature |
-30~+50℃ |
||
| Ambient Humidity |
5~95%RH |
||
| Storage Temperature |
-40~+70℃ |
||
| Shaft Diameter | 12-26.7mm, pair with Shaft Block 3 for smaller shafts | ||
| Accessories |
With 1m cable |
||
| Compliance |
CE、UKCA、EAC、 RoHS certificates
|
||
