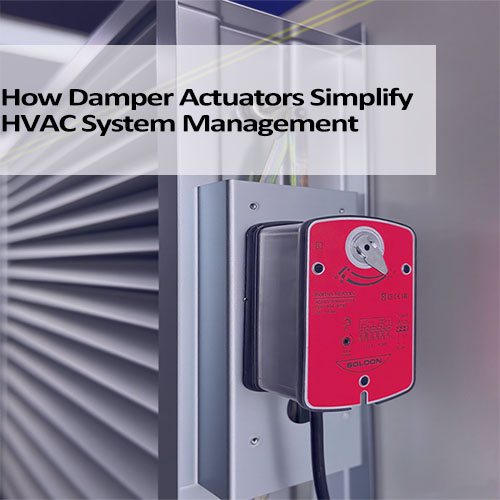

Damper Actuators: The Precision Control Core of HVAC Systems, with a Recommendation for Soloon Controls Products

In HVAC (Heating, Ventilation, and Air Conditioning) systems, which are crucial for maintaining indoor comfort and air quality, damper actuators are indispensable key components. Acting as the “control hands” of the system, they convert control signals into mechanical actions to precisely adjust the opening, closing, and angle of dampers, thereby achieving effective management of air flow. Whether it is for temperature zone control in residential homes or ventilation optimization in commercial buildings, damper actuators play a vital role.

Ⅰ.Core Functions of Damper Actuators

The core functions of damper actuators revolve around air flow regulation in HVAC systems, specifically encompassing the following key aspects:

First, air flow on-off control is one of the basic functions. In scenarios where air flow needs to be quickly blocked or connected, such as fire emergencies, damper actuators can receive signals and rapidly drive dampers to open or close. For instance, fire and smoke damper actuators can quickly close dampers when a fire breaks out, preventing smoke and flames from spreading through air ducts and gaining valuable time for personnel evacuation.

Second, the air flow rate adjustment function meets the differentiated air volume requirements of different areas. In different rooms or areas of large buildings, the demand for cold or hot air varies due to factors such as the number of people and heat generation from equipment. Damper actuators can accurately adjust the opening degree of dampers based on signals from the temperature control system, thereby changing the air flow rate through the air ducts and ensuring that each area receives an appropriate air volume to maintain a stable indoor temperature.

Third, the fail-safe protection function provides important support for the stable operation of HVAC systems. Some damper actuators are equipped with mechanisms such as spring return. When sudden failures like power outages occur, the actuators can rely on the force of the springs to return the dampers to a preset safe position. For example, in some important ventilation systems, dampers can automatically open or close after a power outage to ensure air circulation or block the entry of harmful gases into other areas, preventing safety accidents caused by various issues.

Fourth, the system linkage control function enables damper actuators to be better integrated into the entire HVAC intelligence control system. They can receive signals from various control sources such as thermostats and building automation systems, and work in coordination with other equipment in the system, such as fans and water pumps. When the thermostat detects that the indoor temperature is higher than the set value, it sends a signal to the damper actuator and at the same time links to start the air conditioning unit. The damper actuator adjusts the opening degree of the damper to deliver cold air to the corresponding area, realizing the efficient operation of the system.

II. Main Types of Damper Actuators

Based on different working principles, control methods, and application scenarios, damper actuators can be mainly classified into the following categories:

a) Classification by Power Source

i. Electric Damper Actuators

The main product type of Soloon Controls, driven by electric energy to operate the motor and realize damper movement, they are the mainstream choice for civil and commercial HVAC systems. They feature precise control, fast response, and can be connected to building automation signals (such as 0-10V, 4-20mA). They are suitable for temperature zone control in office buildings and shopping malls. Some are equipped with a spring return function to meet emergency needs. Among them, for special places with flammable and explosive risks, explosion-proof electric damper actuators have been developed. Their motors and electrical control components adopt an explosion-proof sealed structure, which can effectively prevent internal sparks from leaking, balancing safety and intelligent requirements.

ii. Pneumatic Damper Actuators

Driven by compressed air, they have a simple structure and strong explosion-proof performance, and can adapt to high-temperature and high-dust environments (such as chemical plants and boiler rooms). However, they require supporting air compressors and air pipes, resulting in high installation and maintenance costs, so they are rarely used in ordinary civil buildings.

iii. Manual Damper Actuators

The damper is adjusted by manually turning the handle, with no power requirement and a basic structure. They are only used in simple scenarios that do not require automatic control, such as small warehouses and simple residential ventilation ducts, and cannot be adapted to intelligent systems.

b) Classification by Control Method

1. On-Off Damper Actuators

They only support two states: “fully open” and “fully closed”, and cannot adjust the opening degree. They are mainly used in scenarios where air flow needs to be quickly turned on or off. Most fire and smoke damper actuators fall into this category. In case of a fire, they can quickly close to block smoke or open to exhaust smoke.

2. Modulating Damper Actuators

They can continuously adjust the damper opening degree (0%-100%) to achieve precise air flow control. They are suitable for variable air volume (VAV) systems and air conditioning terminal temperature control. For example, in office meeting rooms, they can adjust the input of cold air to maintain a stable temperature.

c) Special Function Types

1. Spring Return Damper Actuators

Most of them are electric type with built-in spring components, and their core advantage is the fail-safe mechanism. When powered on normally, the motor overcomes the spring force to control the valve; in case of power failure or failure, the spring releases energy to push the damper to quickly return to the preset safe position (such as opening for ventilation). They are suitable for places with high requirements for ventilation stability, such as hospital operating rooms and data centers. Soloon Controls products support 5° incremental stroke adjustment and are equipped with mechanical position indicators and manual adjustment functions.

2. Fire and Smoke Damper Actuators

Designed specifically for fire emergencies, they belong to on-off actuators. After receiving signals from fire alarms or temperature sensors, they quickly close the fire dampers to block the spread of fire and smoke, or open the smoke exhaust dampers to improve the evacuation environment. They are suitable for stairwells of high-rise buildings, large shopping malls, and other places. They have high operating torque, are equipped with electronic overload protection, and their mechanical interfaces are compatible with common damper shafts. Some are equipped with status indicators.

3. Explosion-Proof Damper Actuators

Explosion-proof damper actuators are ventilation system control equipment specially designed for flammable and explosive risk environments. Their core function is to drive the opening, closing, or opening degree adjustment of dampers to achieve precise air flow control. At the same time, relying on special structural and material designs, they prevent sparks and high temperatures generated during operation from coming into contact with external flammable and explosive media, fundamentally avoiding safety accidents such as explosions and fires. They are core safety components of ventilation systems in hazardous fields such as petrochemicals, gas, and pharmaceuticals.

Their core design is centered around the two principles of “explosion-proof safety” and “functional adaptation”: In terms of safety, through designs such as explosion-proof sealed enclosures (isolating internal sparks from leaking), anti-static/corrosion-resistant materials (avoiding ignition by friction and medium corrosion), and drive structures without electrical risks (such as pneumatic type with no risk of electric sparks), they ensure compliance with international and industry explosion-proof grade standards (the series produced by Soloon Controls all meet Ex db IIB T6 Gb / Ex tb IIIC T85°C Db or higher grades); they are indispensable safety control units for ventilation systems in hazardous environments.

III. Recommendation of Soloon Controls Damper Actuator Products

Since its establishment in 2000, Soloon Controls has been deeply engaged in the HVAC field for 25 years. Relying on profound technical accumulation, keen insight into industry needs, and continuous innovation capabilities, it has become a well-known brand in the global HVAC control field. Over the past 25 years, Soloon Controls has always been on a mission to “create efficient and reliable HVAC control solutions”. From the research and development of basic control components in the early days to the current full range of damper actuator products with 37 patents, it has provided stable HVAC control support for commercial buildings, industrial sites, and residential homes in many regions around the world. Its product quality and service level have obtained a number of domestic and foreign certifications and are widely recognized by customers at home and abroad. In the field of damper actuators, Soloon Controls has launched a variety of products with excellent performance suitable for different scenarios, including on-off and modulating actuators, spring return and fire and smoke actuators, becoming an ideal choice for many users, thanks to its pursuit of excellence in technical details.

IV. Product Advantages

1. Industry-Leading Precision Control to Ensure Efficient System Operation

In terms of the core performance of damper actuators—precision control, Soloon Controls products show significant advantages. Currently on the market, some small and medium-sized brands of damper actuators have low signal reception accuracy and opening degree errors due to limited technical capabilities. This can lead to unstable air flow control in HVAC systems, which not only affects indoor temperature comfort but also may cause additional energy consumption. However, Soloon Controls’ damper actuators adopt high-end chips and motor drive technology, which can accurately receive and respond to signals from the control system, with a high proportion of digital signal reception. Compared with areas using ordinary brand actuators, energy consumption is reduced, and at the same time, operational failures of air system components such as fan overload and air duct noise caused by inaccurate damper positioning are effectively avoided, ensuring the efficient and stable operation of the entire HVAC system.

2. A Wide Range of Types Covering All Scenarios to Meet Diverse Needs

Relying on 25 years of industry experience, Soloon Controls has a deep understanding of the differentiated needs of HVAC systems for damper actuators in different scenarios and has built a comprehensive product matrix. For fire smoke exhaust scenarios, it has launched spring return on-off damper actuators, which adopt fast-response motors and have passed strict tests verified by multiple international standards, effectively blocking the spread of smoke and flames; for variable air volume systems in large commercial buildings, they are compatible with systems of many brands on the market, supporting various control signals such as 0-10V and 4-20mA. Currently, they have provided support for HVAC systems in various domestic and international environments.

V. Purchase Channels and Services

If you need to purchase damper actuators, you can directly contact the company through Soloon Controls’ official websites (solooncontrols.com or soloonactuators.com) for purchase. The official websites not only display the core products and cases of Soloon Controls during its 25-year development but also provide detailed product specifications, performance parameters, and descriptions of applicable scenarios. If you have any questions during product selection, installation, commissioning, or use, you can contact Soloon Controls through the official websites. Soloon Controls’ professional team will provide you with consultation, quotation, and technical support to ensure that you can obtain a satisfactory acquisition experience and product use guarantee.

As a key control component of HVAC systems, the performance and quality of damper actuators directly affect the operation effect of the system and the comfort of the indoor environment. With 25 years of experience in the HVAC field, Soloon Controls is driven by technological innovation and oriented to user needs, creating accurate, reliable, and durable damper actuator products and providing high-quality HVAC control solutions for users around the world, which is worthy of your trust and choice.
