This series of actuators is designed for damper control in environments/workplaces with explosive hazardous gases, steam or combustible dust in HVAC, petroleum, petrochemical, metallurgy, ships, power plants, nuclear power plants, pharmaceutical plants, etc. It has obtained China Compulsory Certification (CCC), EU ATEX, IECEx certification, and Russian EAC certification.
Explosion-proof marking: Gas Ex db ⅡC T6 Gb / Dust Ex tb ⅢC T85℃ Db
Product Features
SF: 5Nm、10Nm、15Nm、20Nm、30Nm、40Nm、50Nm、60Nm
NS: 10Nm、20Nm、30Nm、40Nm、50Nm、75Nm、100Nm、150Nm
Order Code
ExS6061Pro-1 2 3 F 4-5/6

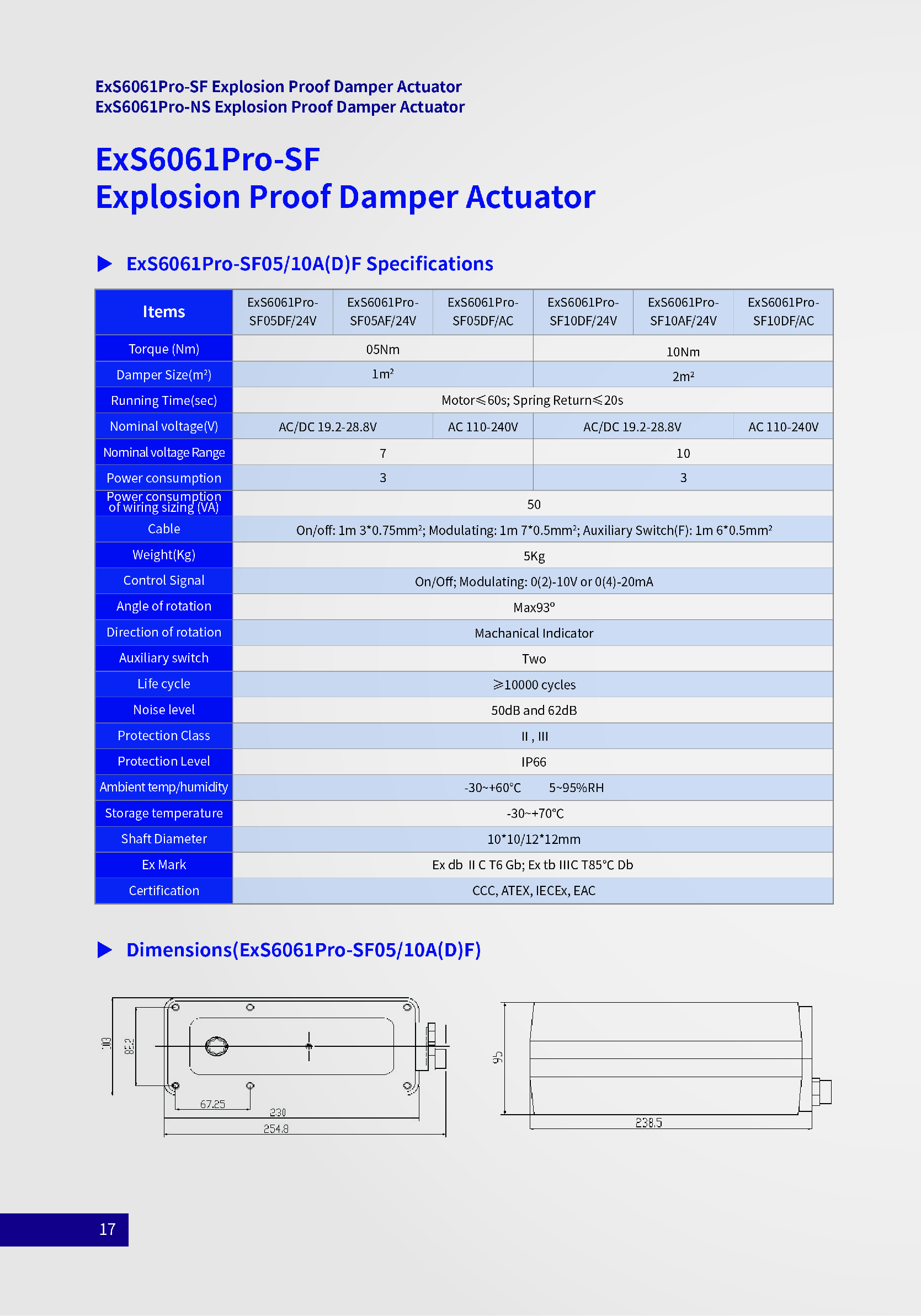

ExS6061Pro-SF05/10A(D)F Specifications
| Items |
ExS6061Pro- SF05DF/24V |
ExS6061Pro- SF05AF/24V |
ExS6061Pro- SF05DF/AC |
ExS6061Pro- SF10DF/24V |
ExS6061Pro- SF10AF/24V |
ExS6061Pro- SF10DF/AC |
| Torque (Nm) |
5Nm |
10Nm |
||||
| Damper Size(m2) |
1m2
|
2m2 |
||||
| Running Time(sec) |
Motor≤60s；Spring Return≤20s |
|||||
| Nominal voltage(V) |
AC/DC 19.2-28.8V |
AC 110-240V |
AC/DC 19.2-28.8V |
AC 110-240V |
||
| Nominal voltage Range |
7
|
10 |
||||
| Power consumption |
3
|
3 |
||||
| Power consumption of wiring sizing (VA) |
50 |
|||||
| Cable |
On/off：1m 3*0.75mm2；Modulating：1m 7*0.5mm2；Auxiliary Switch(F）：1m 6*0.5mm2 |
|||||
| Weight（Kg） |
5Kg |
|||||
| Control Signal |
On/Off；Modulating：0(2)-10V or 0(4)-20mA |
|||||
| Angle of rotation |
Max93º |
|||||
| Direction of rotation |
Machanical Indicator |
|||||
| Auxiliary switch |
Two |
|||||
| Life cycle |
≥10000 cycles |
|||||
| Noise level |
50d Band 62dB |
|||||
| Protection Class |
Ⅱ，Ⅲ
|
|||||
| Protection Level |
IP66 |
|||||
| Ambient temp/humidity |
-30~+60℃ 5~95%RH |
|||||
| Storage temperature |
-40~+70℃ |
|||||
| Shaft Diameter |
10*10/12*12mm
|
|||||
| Ex Mark |
Ex db ⅡC T6 Gb；Ex tb ⅢC T85℃ Db
|
|||||
| Certification |
CCC, ATEX, IECEx, EAC |
|||||
ExS6061Pro-SF15/20A(D)F Specifications
| Items |
ExS6061Pro- SF15DF/24V |
ExS6061Pro-SF15AF/24V |
ExS6061Pro- SF15DF/AC |
ExS6061Pro- SF20DF/24V |
ExS6061Pro- SF20AF/24V |
ExS6061Pro- SF20DF/AC |
| Torque (Nm) |
15Nm |
20Nm |
||||
| Damper Size(m2) |
3m2
|
4m2 |
||||
| Running Time(sec) |
Motor≤60s；Spring Return≤20s |
|||||
| Nominal voltage(V) |
AC/DC 19.2-28.8V |
AC 110-240V |
AC/DC 19.2-28.8V |
AC 110-240V |
||
| Nominal voltage Range |
12 |
12 |
||||
| Power consumption |
3
|
3 |
||||
| Power consumption of wiring sizing (VA) |
50 |
|||||
| Cable |
On/off：1m 3*0.75mm2；Modulating：1m 7*0.5mm2；Auxiliary Switch(F）：1m 6*0.5mm2 |
|||||
| Weight（Kg） |
5Kg |
|||||
| Control Signal |
On/Off；Modulating：0(2)-10V or 0(4)-20mA |
|||||
| Angle of rotation |
Max93º |
|||||
| Direction of rotation |
Machanical Indicator |
|||||
| Auxiliary switch |
Two |
|||||
| Life cycle |
≥10000 cycles |
|||||
| Noise level |
50d Band 62dB |
|||||
| Protection Class |
Ⅱ，Ⅲ
|
|||||
| Protection Level |
IP66 |
|||||
| Ambient temp/ humidity |
-30~+60℃ 5~95%RH |
|||||
| Storage temperature |
-40~+70℃ |
|||||
| Shaft Diameter |
10*10/12*12mm
|
|||||
| Ex Mark |
Ex db ⅡC T6 Gb；Ex tb ⅢC T85℃ Db
|
|||||
| Certification |
CCC, ATEX, IECEx, EAC |
|||||
