This series of actuators is designed for damper control in environments/workplaces with explosive hazardous gases, steam or combustible dust in HVAC, petroleum, petrochemical, metallurgy, ships, power plants, nuclear power plants, pharmaceutical plants, etc. It has obtained China Compulsory Certification (CCC), EU ATEX, IECEx certification, and Russian EAC certification.
Explosion-proof marking: Gas Ex db ⅡC T6 Gb / Dust Ex tb ⅢC T85℃ Db
Product Features

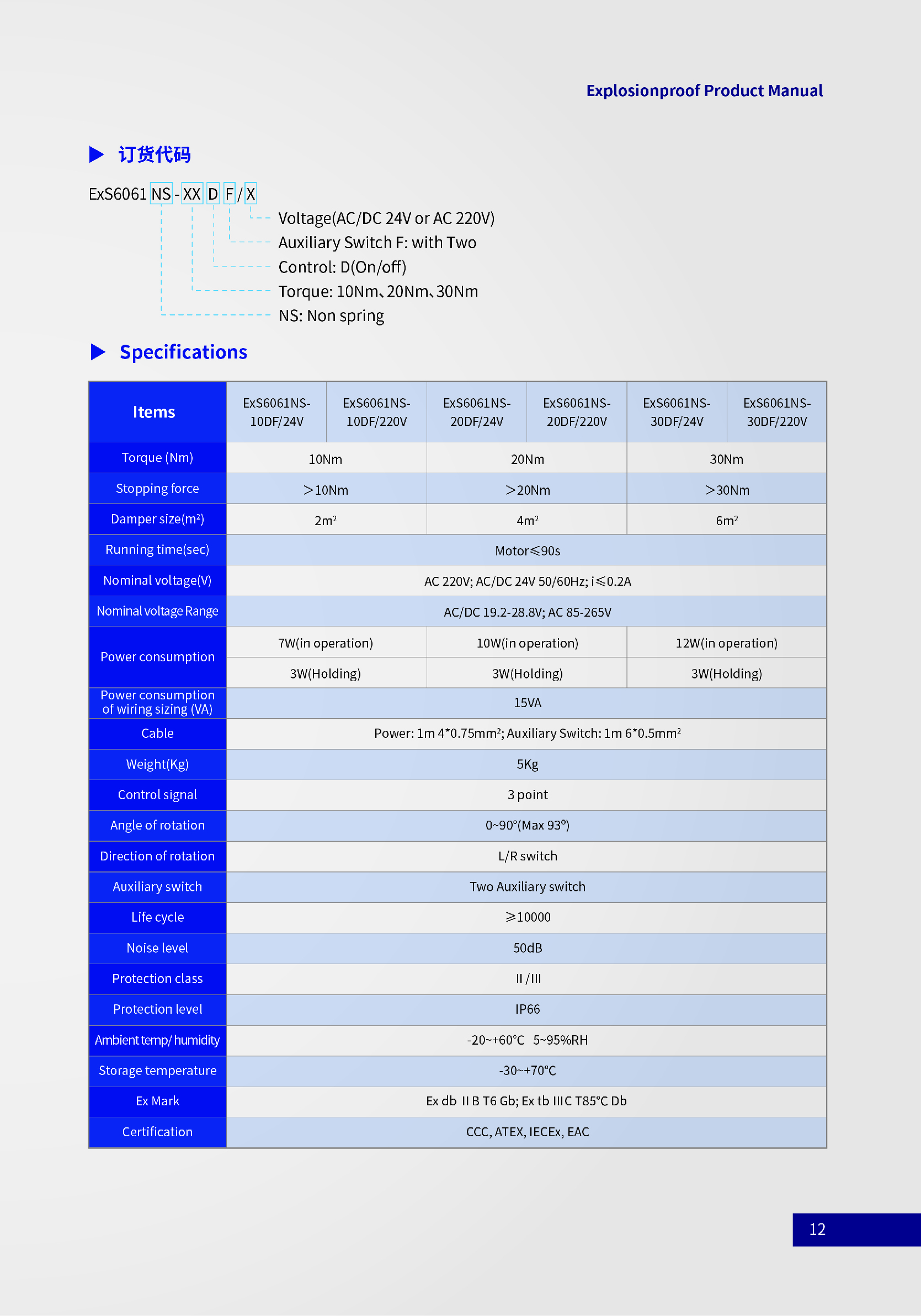

Specifications
| Items |
ExS6061NS- 10DF/24V |
ExS6061NS- 10DF/220V |
ExS6061NS- 20DF/24V |
ExS6061NS- 20DF/220V |
ExS6061NS- 30DF/24V |
ExS6061NS- 30DF/220V |
|
| Torque (Nm) |
10Nm |
20Nm |
30Nm |
||||
| Stopping force |
＞10Nm |
＞20Nm |
＞30Nm |
||||
| Damper size(m2) |
2m2 |
4m2 |
6m2 |
||||
| Running time(sec) |
Motor≤90s |
||||||
| Nominal voltage(V) |
AC 220V;AC/DC 24V 50/60Hz;i≤0.2A |
||||||
| Nominal voltage Range |
AC/DC 19.2-28.8V;AC 85-265V |
||||||
| Power consumption |
7W(in operation)
|
10W(in operation)
|
12W(in operation)
|
||||
|
3W(Holding) |
3W(Holding) |
3W(Holding) |
|||||
| Power consumption of wiring sizing (VA) |
15VA |
||||||
| Cable |
Power：1m 4*0.75mm2；Auxiliary Switch：1m 6*0.5mm2 |
||||||
| Weight（Kg） |
5Kg |
||||||
| Control signal |
3 point |
||||||
| Angle of rotation |
0~90°（Max 93º） |
||||||
| Direction of rotation |
L/R switch |
||||||
| Auxiliary switch |
Two Auxiliary switch |
||||||
| Life cycle |
≥10000 |
||||||
| Noise level |
50dB |
||||||
| Protection class |
Ⅱ/Ⅲ Ⅱ （Fully insulated） |
||||||
| Protection level |
IP66 |
||||||
| Ambient temp/ humidity |
-20~+60℃ 5~95%RH |
||||||
| Storage temperature |
-40~+70℃ |
||||||
| Ex Mark |
Ex db ⅡB T6 Gb；Ex tb ⅢC T85℃ Db |
||||||
| Compliance |
CCC, ATEX, IECEx, EAC |
||||||
