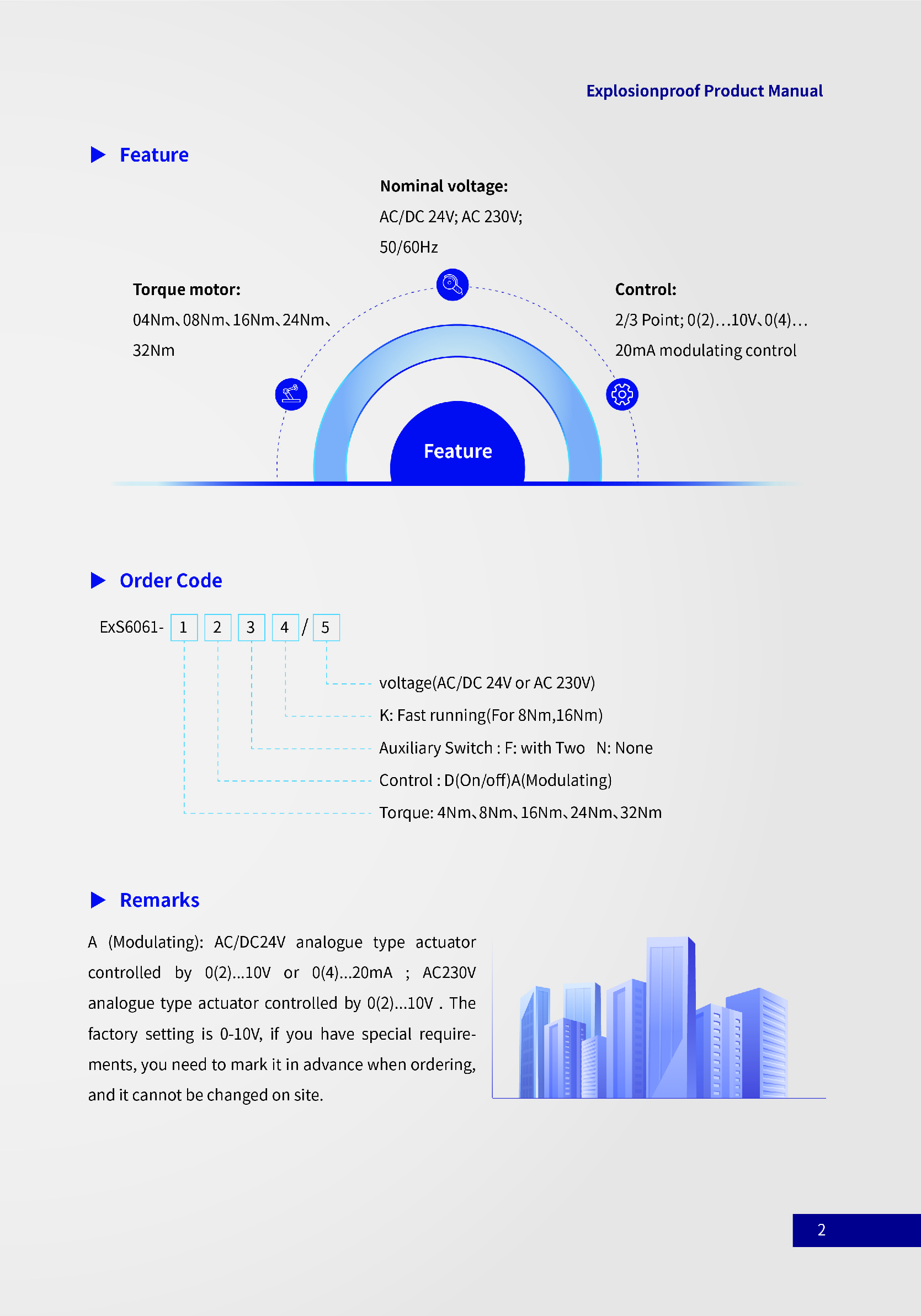

his series of actuators is designed for damper control in environments/workplaces with explosive hazardous gases, steam or combustible dust in HVAC, petroleum, petrochemical, metallurgy, ships, power plants, nuclear power plants, pharmaceutical plants, etc. It has obtained China Compulsory Certification (CCC), EU ATEX, IECEx certification, and Russian EAC certification.
Explosion-proof marking: Gas Ex db ⅡC T6 Gb / Dust Ex tb ⅢC T85℃ Db

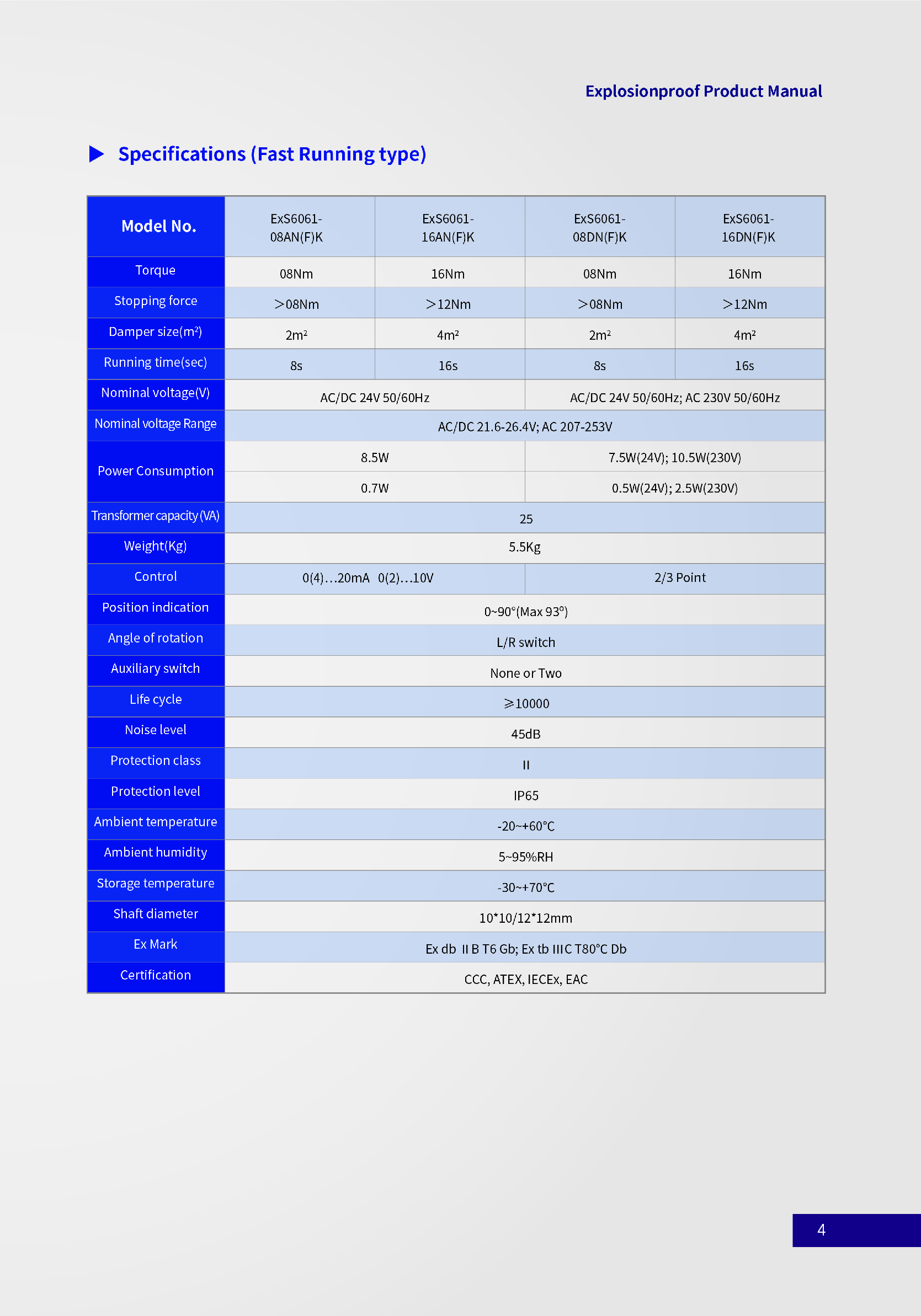

Specifications (Fast Running type)
| Model No. |
ExS6061-08AN(F)K |
ExS6061-16AN(F)K |
ExS6061-08DN(F)K |
ExS6061-16DN(F)K |
| Torque |
8Nm |
16Nm |
8Nm |
16Nm
|
| Stopping force |
>8Nm |
>12Nm |
>8Nm |
>12Nm
|
| Damper size（m2） |
2m2 |
4m2 |
2m2 |
4m2
|
| Running time（sec） |
8s |
16s |
8s |
16s
|
| Nominal voltage(V) |
AC/DC 24V 50/60Hz
|
AC/DC 24V 50/60Hz;AC 230V 50/60Hz |
||
| Nominal voltage Range |
AC/DC 21.6-26.4V;AC 207-253V |
|||
|
Power Consumption |
8.5W(in operation) |
7.5W（24V）;10.5W（230V）(in operation) |
||
|
0.7W(Holding) |
0.5W（24V）;2.5W（230V）(Holding) |
|||
| Transformer capacity (VA) |
25VA |
|||
| Weight（Kg） |
5.5Kg |
|||
| Control |
0(4)…20mA 0(2)…10V |
2/3 Point |
||
| Position indication |
0~90°（Max 93º） |
|||
| Angle of rotation |
L/R switch |
|||
| Auxiliary switch |
None or Two |
|||
| Life cycle |
≥10000 |
|||
| Noise level |
45dB |
|||
| Protection class |
Ⅱ
|
|||
| Protection level |
IP65 |
|||
| Ambient temperature |
-20~+60℃ |
|||
| Ambient humidity |
5~95%RH |
|||
| Storage temperature |
-40~+70℃ |
|||
| Shaft diameter |
10*10/12*12mm |
|||
| Ex Mark |
Ex db ⅡB T6 Gb;Ex tb ⅢC T80℃ Db |
|||
| Compliance |
CCC, ATEX, IECEx, EAC |
|||
